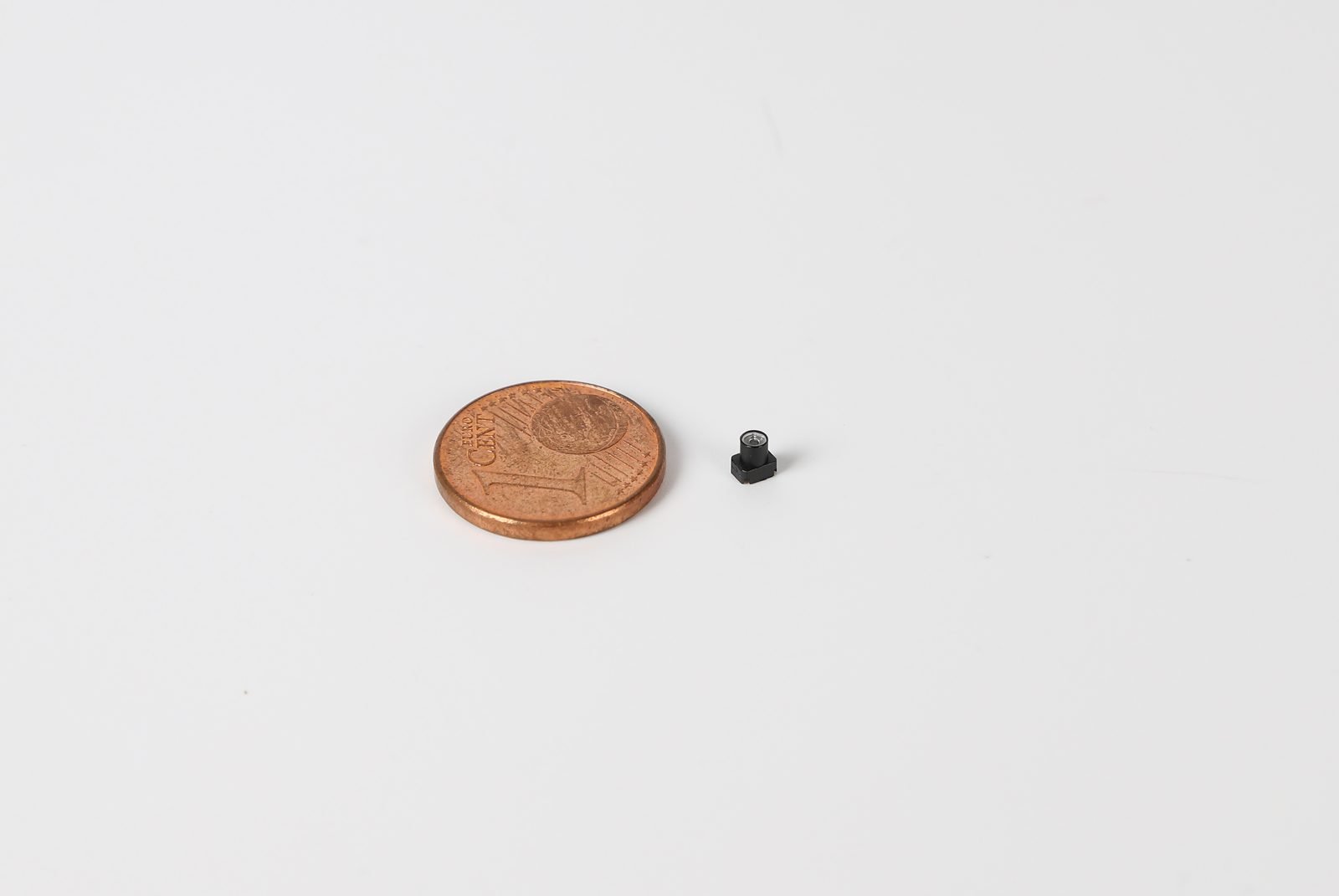

Lensmind industrial endoscope and borescope camera module
Endoscope Lenses · Industrial

Industrial Endoscope Lenses for RVI and Borescope

Six catalog models for industrial remote visual inspection. Tube-matched optics with in-house IP67/IP68 validation for oil-wetted and wash-down service.

Request a quote
6 Catalog Models RVI / Borescope IP67/IP68 Tested Tube-matched Builds ISO 9001
Official specification sheet

6 Industrial models. Every number on one page.

Pick a model from the list — the page jumps straight to its row. FOV, F-number, sensor format, TTL and matched sensor per the official Industrial sheet.

Lensmind LMQXYK industrial borescope camera module Lensmind LMQXYK industrial endoscope module, side view Lensmind endoscope camera modules, CMOS lens modules for medical and industrial borescopes
Part NO.FOVFNO.SensorTTLResolutionMatched

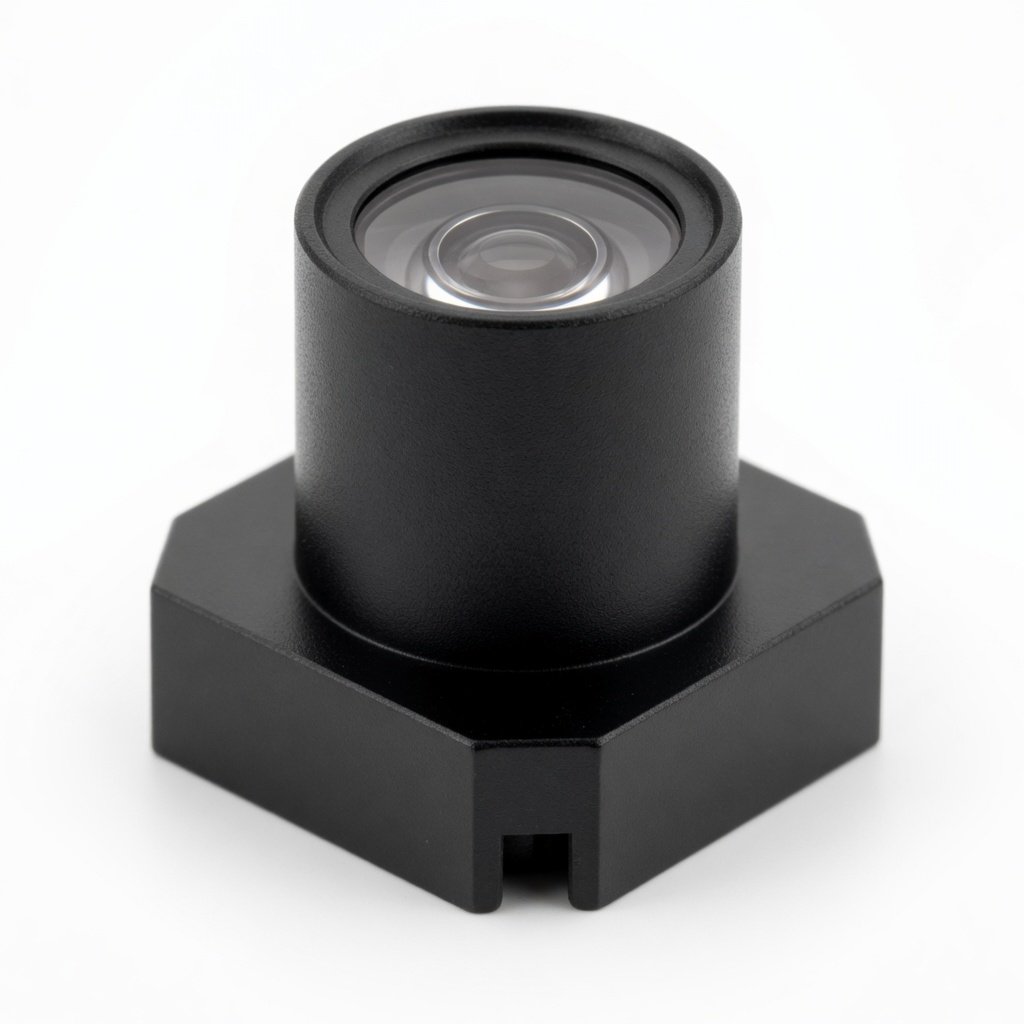

LMQXYK01378°F21/9″2.1 mm1 MPOV9734 / GC1009
LMQXYK2086B03190°F2.61/9″2.9 mm1 MPOV9734
LMQXYK1941A78°F3.51/9″2.2 mm1 MPBF3703 / GC0312

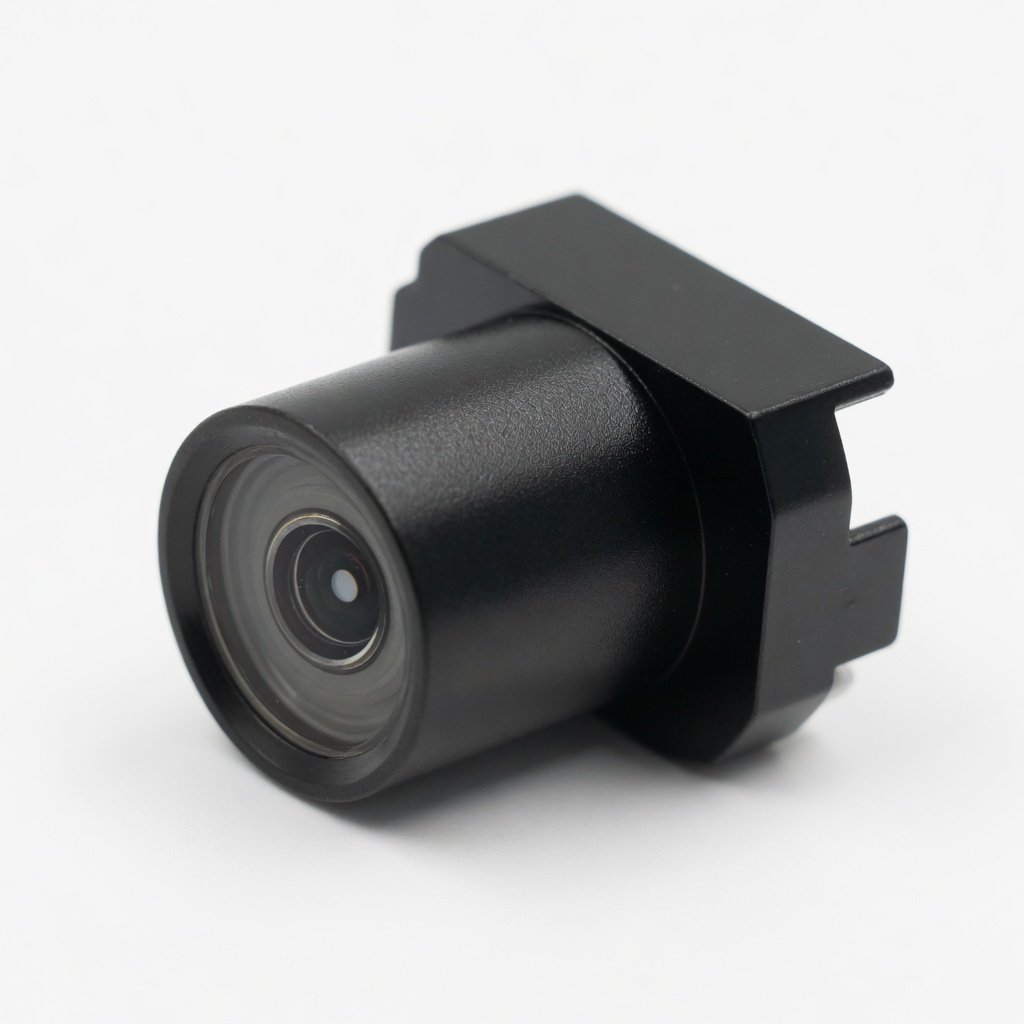

LMQXYK1503A046-F86°F3.81/6″3 mm2 MPGC0308 / GC0328
LMQXYK19A03186.1°F2.41/5″2.6 mm2 MPGC0308 / GC2385 / GC2375
LMQXYK1588A5588.8°F31/5″3.3 mm5 MPGC5025 / GC2385
Request Datasheets & Pricing
Lensmind Lab & Factory

Measured, Not Claimed — Data from Our Lab

Every claim on this page is backed by measurement. Below: the metrology instruments in our quality lab, optical bench and Zemax simulation records, and the production floor that builds and signs off every batch.

Metrology instruments

Taylor Hobson Form TalySurf surface profilometer in the Lensmind quality lab for lens surface metrology
Taylor Hobson Form TalySurf — surface profilometry in our quality lab
2D vision measuring machine inspecting a Lensmind lens component in the quality control lab
2D vision measuring machine — dimension inspection under 1 µm
Lens centering measurement with a Trioptics OptiCentric instrument at the Lensmind factory
Trioptics OptiCentric — lens centering & alignment measurement
Focus position measurement of a Lensmind lens assembly with a Trioptics OptiSurf instrument
Trioptics OptiSurf — focus position measurement on the bench
Engineer running an MTF test on a Lensmind lens at a production test station
MTF test station — engineer running a production MTF test

Lab data & simulation records

MTF curves across image height for Lensmind machine vision lens configurations, sagittal and tangential
Measured MTF vs image height — sagittal & tangential
Relative distortion curve of a Lensmind lens plotted against image height in percent
Relative distortion curve, plotted per batch
Zemax through-focus MTF simulation of a Lensmind 54 degree f/1.2 lens design at 85 line pairs per millimeter
Through-focus MTF simulation @ 85 lp/mm
Zemax spot diagram of a Lensmind f/1.2 wide angle lens across 0 to 31.6 degree field positions
Spot diagram — F/1.2 wide-angle design, 0–31.6°
Field curvature and F-tan theta distortion plots from Zemax simulation of a Lensmind f/1.2 lens design
Field curvature & F-tan θ distortion — design analysis

Production floor

Operators assembling lenses inside a Lensmind cleanroom assembly room
Cleanroom assembly room — sub-2 mm optics built in controlled air
Row of CNC lathes machining precision lens barrels in the Lensmind workshop
CNC lathe workshop — precision lens barrels machined in-house
Optical polishing machines finishing lens elements at the Lensmind factory
Optical polishing machines — elements finished to curve
Ultrasonic cleaning and spin-dry line for optical parts at the Lensmind factory
Ultrasonic cleaning & spin-dry line for optical parts
MTF testing of M12 board lenses at a Lensmind production test station
M12 board lenses on the production MTF test station
Checking M12x0.5 lens mount threads with a go thread gauge at Lensmind
M12×0.5 mount checked with a go thread gauge, every unit

Every batch ships with its own MTF, distortion, BFL and DOF records. Want the full test pack for a specific model? Request the full test report →
