Thermal Imaging Lenses | 41 LWIR Models

Official specification sheet

Forty thermal models. Every number on one page.

Forty LMXHG models for 8 µm, 12 µm and 17 µm uncooled detectors, EFL 2.2–100 mm. Pick a model from the list — the page jumps straight to its row.

Lensmind LMXHG large-aperture thermal imaging lens for uncooled detectors

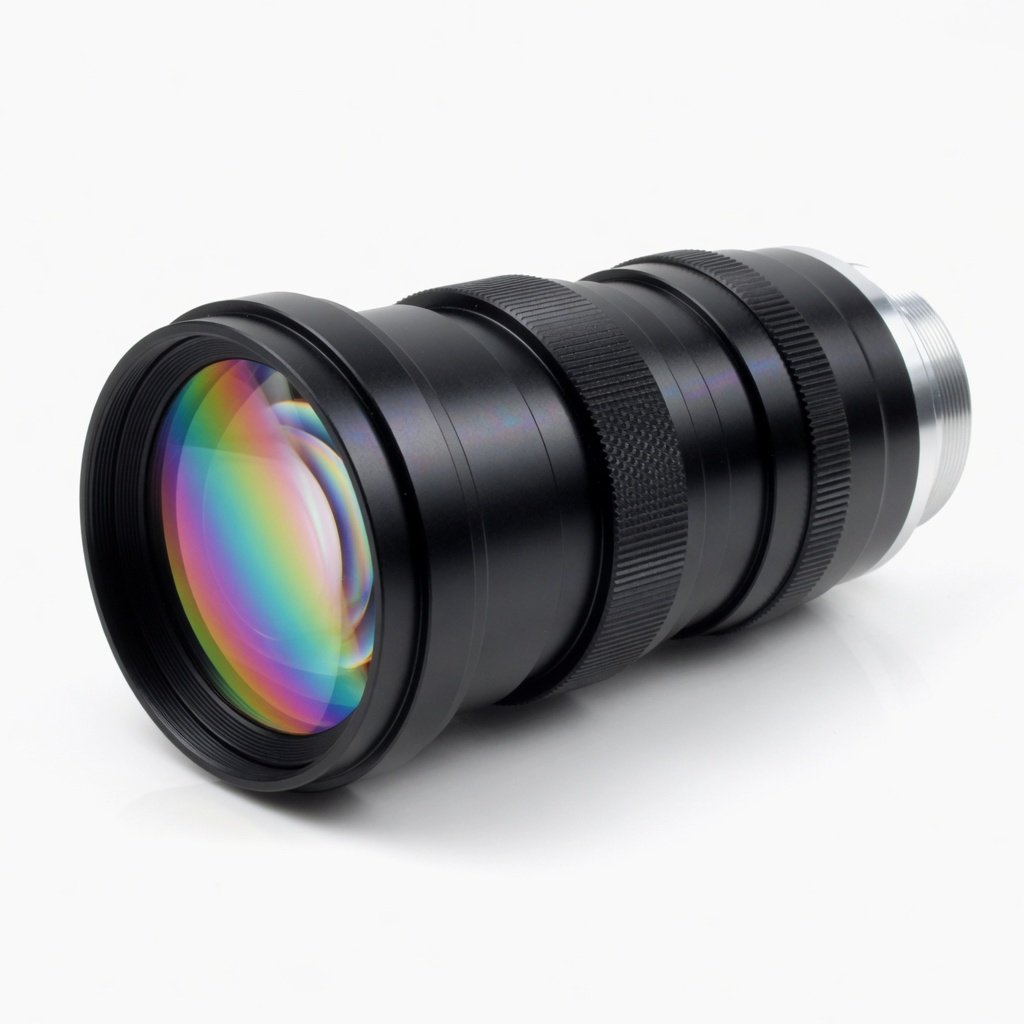

Lensmind LMXHG continuous zoom thermal imaging lens

Lensmind LMXHG thermal imaging lens family line-up

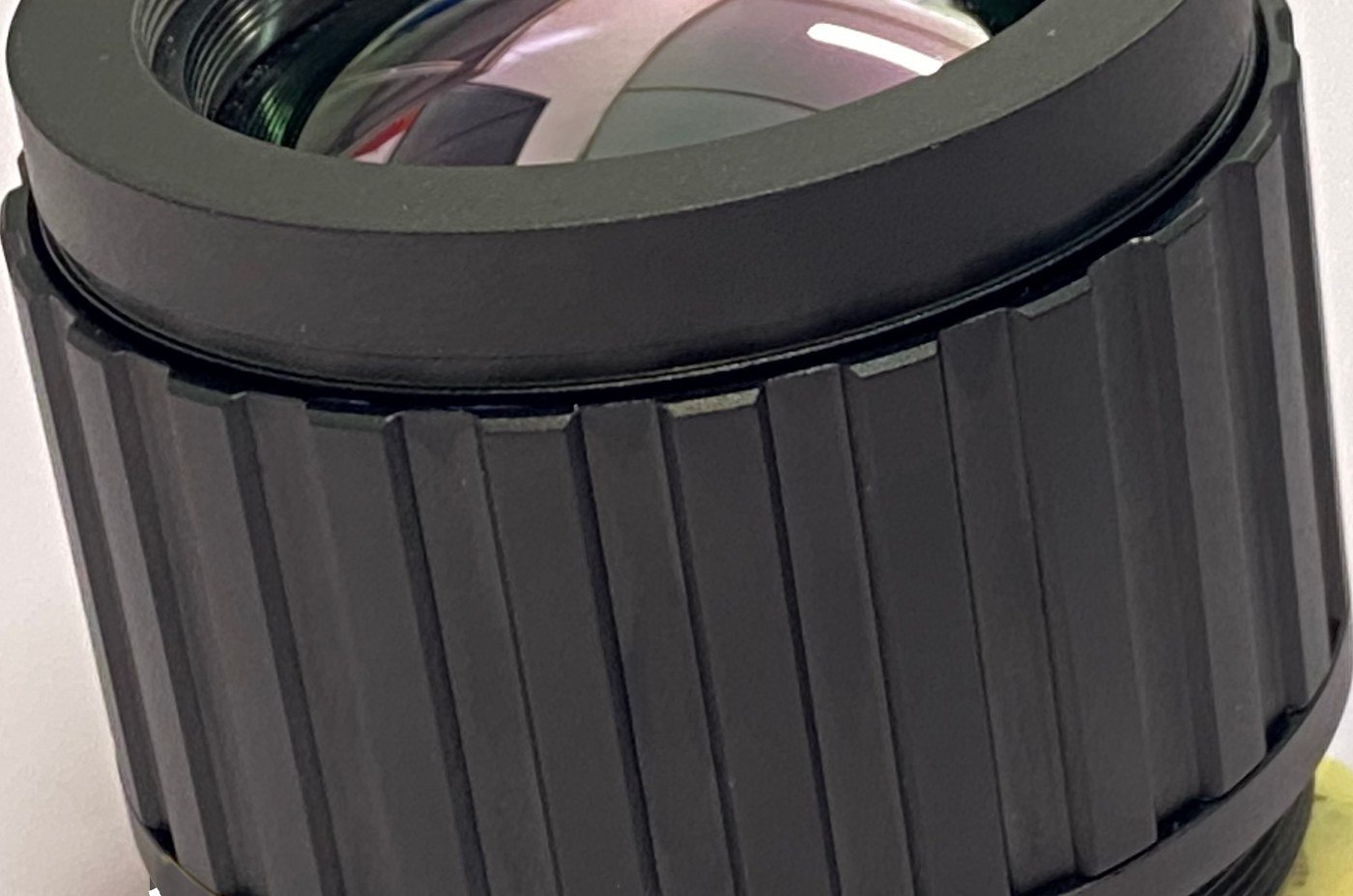

Lensmind LMXHG thermal imaging lens, front element view

Sensor 8μm 7 models

Part NO.	EFL (mm)	FNO.	FOV H	FOV V	Mount	Resolution

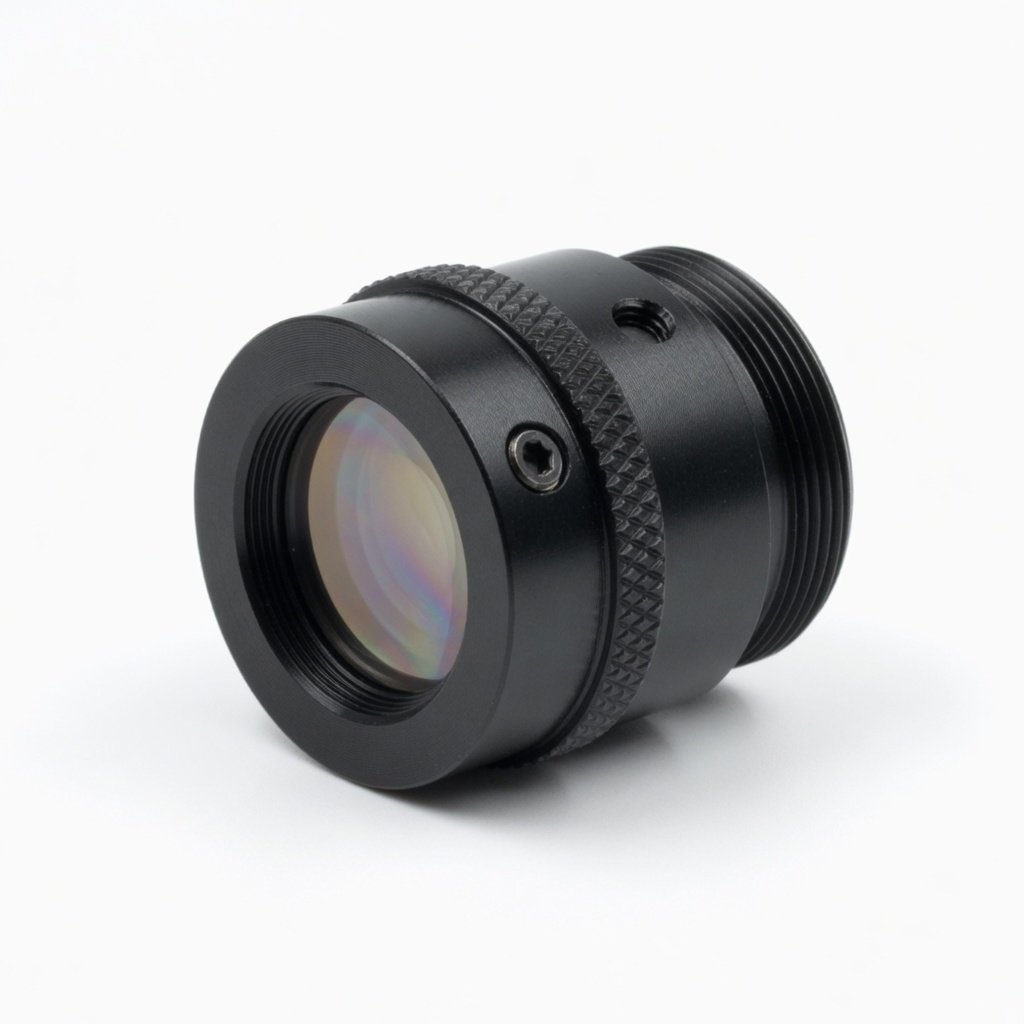

LMXHG-003	6	0.85	48.5	38.8	M17*0.5	640*512

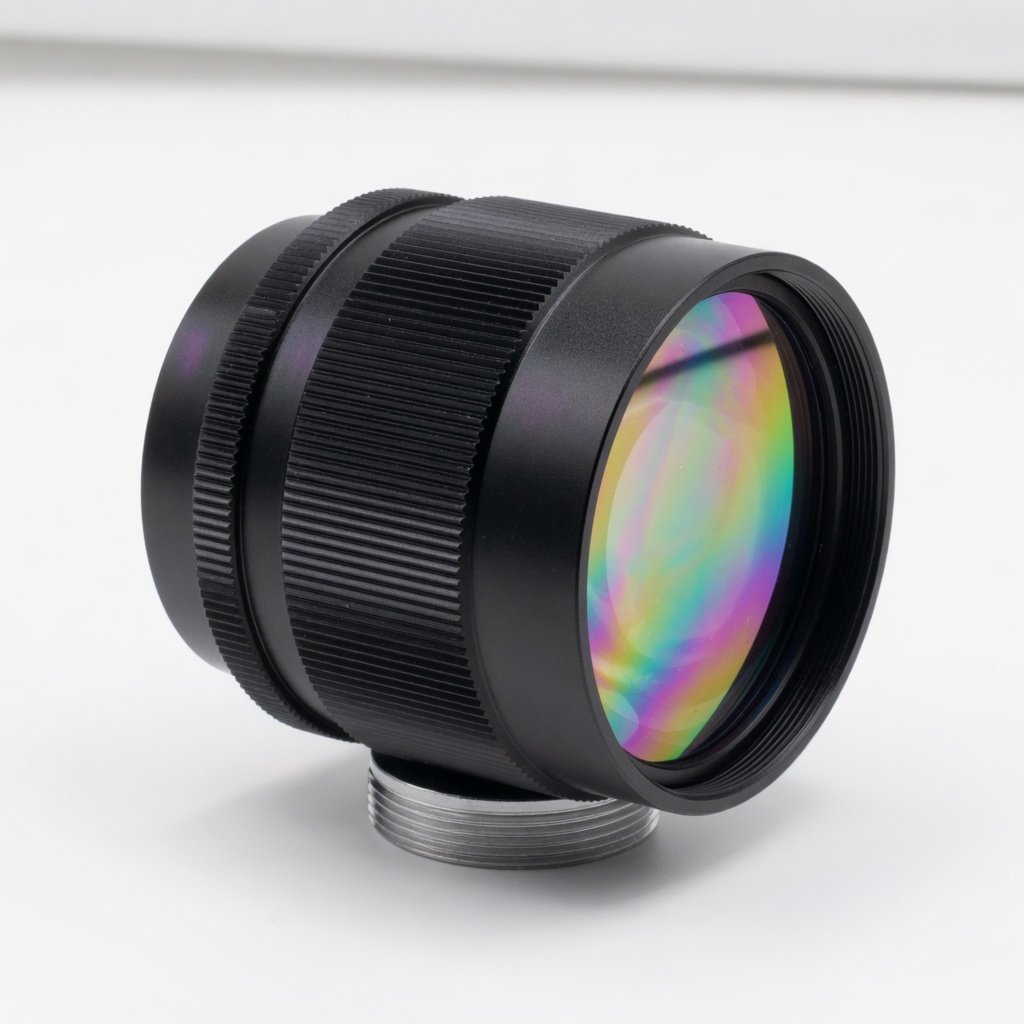

LMXHG-006	9	1.0	67.3	53.2	M45*0.75	1280*1024
LMXHG-007	14	1.0	41.2	33.1	M34*0.5	1280*1024
LMXHG-008	25	1.0	23.2	18.6	M36*0.5	1280*1024
LMXHG-009	35	1.0	16.5	13.3	M40*0.5	1280*1024

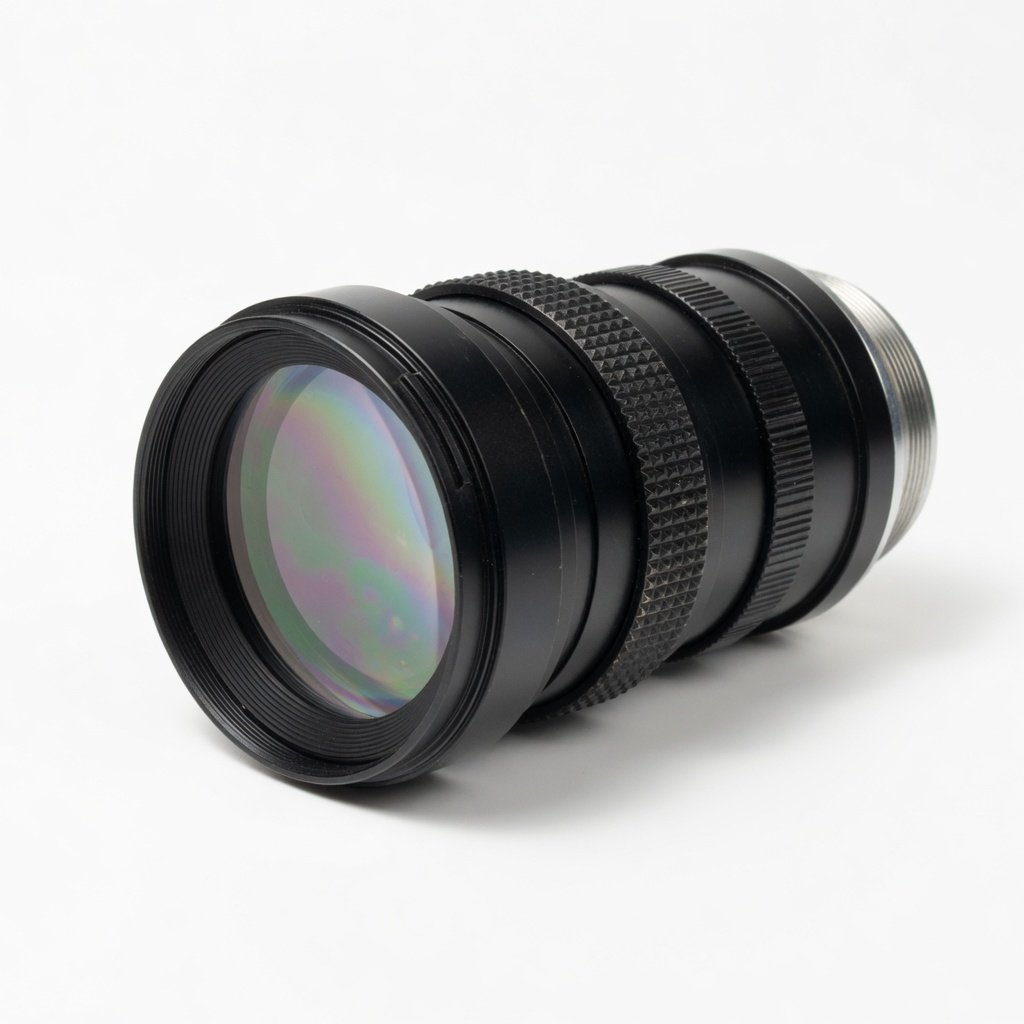

LMXHG-011	50	1.0	11.5	9.3	M45*1	1280*1024
LMXHG-012	75	1.0	11.6	9.3	M45*0.75	1280*1024

Sensor 12μm 30 models

Part NO.	EFL (mm)	FNO.	FOV H	FOV V	Mount	Resolution

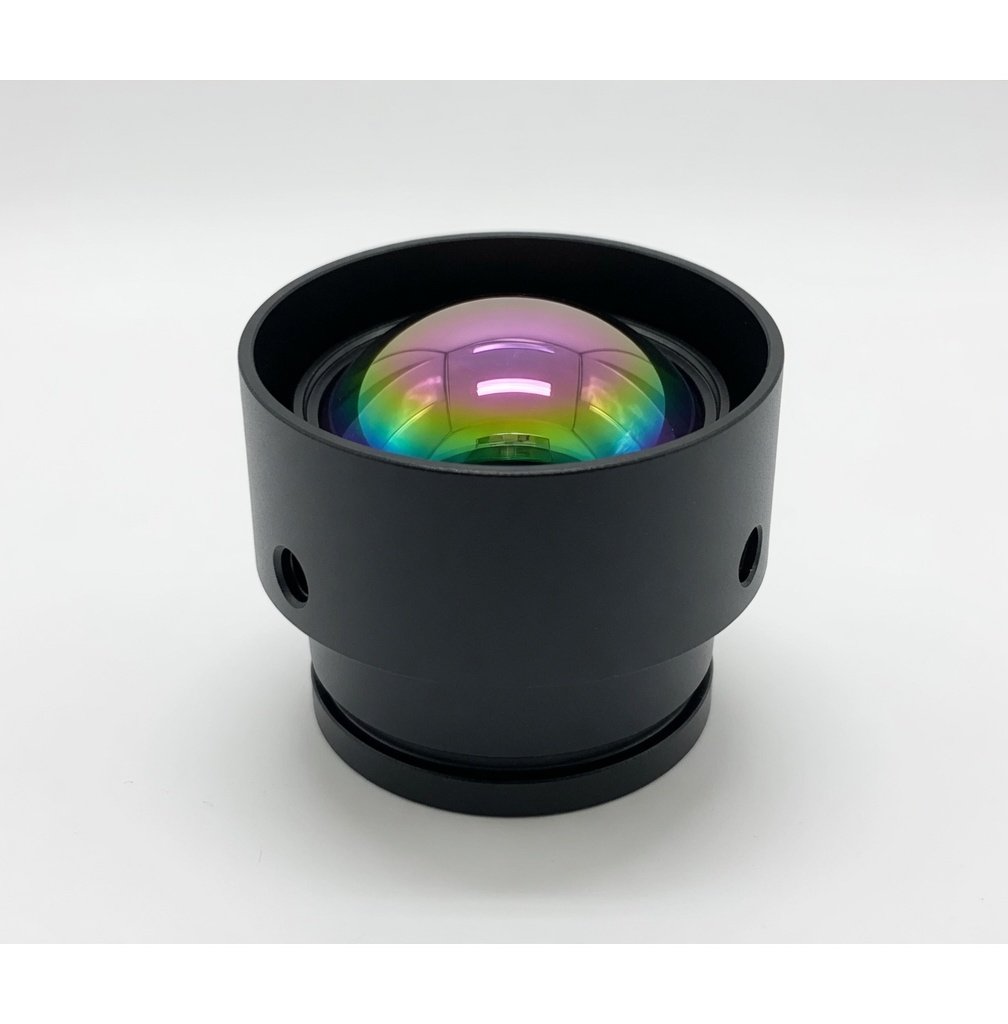

LMXHG-017	2.2	1.05	82.8	60.2	M14*0.5	256*192
LMXHG-019	4	1.0	46.7	34	M16*0.5	256*192
LMXHG-020	6.8	1.0	25.6	19.2	M14*0.5	256*192
LMXHG-021	7	1.0	24.6	18.4	M18*0.75	256*192
LMXHG-022	10	0.88	17.6	13.2	M18*0.75	256*192
LMXHG-024	13	1.0	13.6	10.2	M18*0.75	256*192
LMXHG-027	5	1.0	43.6	32.8	M16*0.5	320*240
LMXHG-028	6.8	1.0	31.6	23.7	M14*0.5	320*240
LMXHG-029	15	1.0	14.6	11	M14*0.5	320*240
LMXHG-030	4.1	1.15	64.6	48.3	M17*0.75	384*288
LMXHG-031	5.6	1.0	45	34.1	M14*0.5	384*288
LMXHG-032	5.3	1.0	55	40.8	M22*0.5	400*300
LMXHG-033	7.5	1.0	36	27.2	M17*0.5	400*300

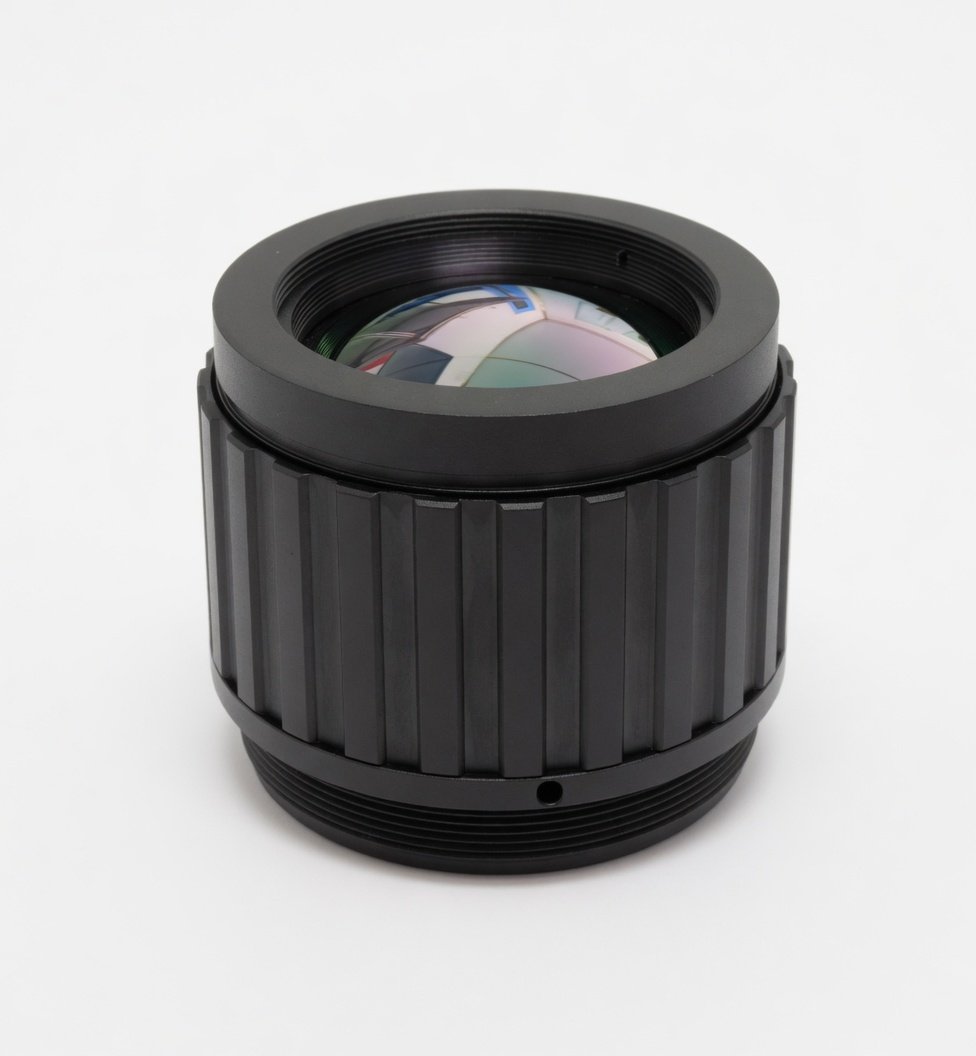

LMXHG-036	35	0.9	7.8	5.9	M22*0.5	400*300
LMXHG-037	4.1	1.0	102	83	M19*0.5	640*512
LMXHG-038	5.5	1.1	86	66.8	M34*0.5	640*512
LMXHG-039	7.5	1.0	63.8	51	M17*0.5	640*512
LMXHG-043	13	1.0	32.6	26.3	M18*0.5	640*512
LMXHG-048	19	1.0	23.3	18.6	M20*0.5	640*512
LMXHG-051	25	0.9	17.5	14	M30*0.75	640*512
LMXHG-055	50	1.0	8.7	7	M34*0.5	640*512
LMXHG-059	75	1.2	5.8	4.7	M34*0.75	640*512
LMXHG-067	7.8	1.2	120.2	94.1	M34*0.75	1280*1024
LMXHG-068	9	1.0	105.1	81.9	M45*0.75	1280*1024
LMXHG-069	14	1.0	60.5	49	M34*0.5	1280*1024
LMXHG-070	25	1.0	34.3	27.7	M36*0.5	1280*1024
LMXHG-071	35	1.0	24.4	19.7	M40*0.5	1280*1024
LMXHG-074	50	1.0	17	13.7	M45*1	1280*1024
LMXHG-076	75	1.0	11.6	9.3	M45*0.75	1280*1024
LMXHG-077	100	1.15	8.8	7	M34*0.5	1280*1024

Sensor 17μm 3 models

Part NO.	EFL (mm)	FNO.	FOV H	FOV V	Mount	Resolution
LMXHG-082	9.7	1.0	36.5	27.2	M29*0.75	384*288
LMXHG-083	25	1.0	24.4	18.5	M34*0.5	640*512
LMXHG-085	100	1.2	6.2	5	M34*0.75	640*512
