Machine Vision · FA (C-Mount)

C-Mount FA Lenses — 29 Models, 4 Sensor Groups, Every Spec on One Page

Twenty-nine C-mount FA models in four sensor groups on the official HS FA sheet: 1/1.8″ (8MP), 2/3″ (5MP), 1.1″ (10MP & 20MP), and 4/3″ (12MP). Ground, centered, and MTF-validated in-house for AOI lines and robotic inspection that cannot tolerate edge deformation or batch drift. Every model ships with per-batch test records, and the full spec tables sit further down this page.

Request a quote
29 Catalog Models 4 Sensor Groups 10K+ Batch Consistency

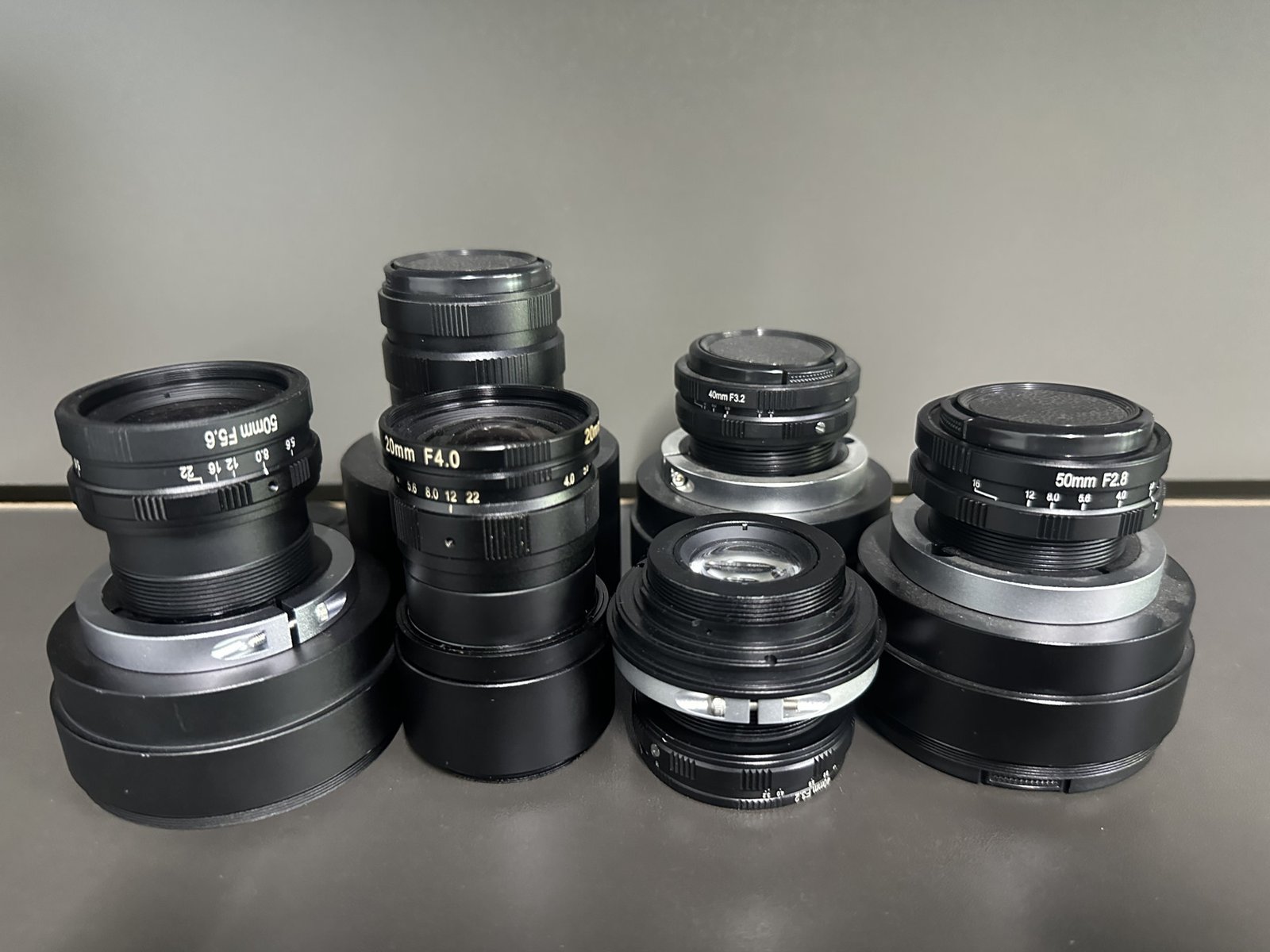

Lensmind FA C-mount machine vision lenses including 20mm F4.0, 40mm F3.2, 50mm F2.8 and 60mm F5.6
HS FA specification sheet

29 C-mount FA models. Every number on one page.

Pick a model from the list — the page jumps straight to its row. Specs are per the official Lensmind HS FA sheet: EFL, F-number, field of view, BFL, distortion, focusing range and mount thread. The lenses look alike; the numbers decide.

Lensmind 1/1.8 inch 8MP FA C-mount lens family group photo Lensmind 2/3 inch 5MP FA C-mount lens family group photo Lensmind 1.1 inch 20MP FA C-mount fisheye lens MH2406-20MP Lensmind 4/3 inch 12MP FA C-mount lens family group photo

Sensor 1/1.8″ 8MP · 5 models

Part NO.EFLFNO.MountFOV DFOV HFOV VBFLDistortionFocusing RangeThread

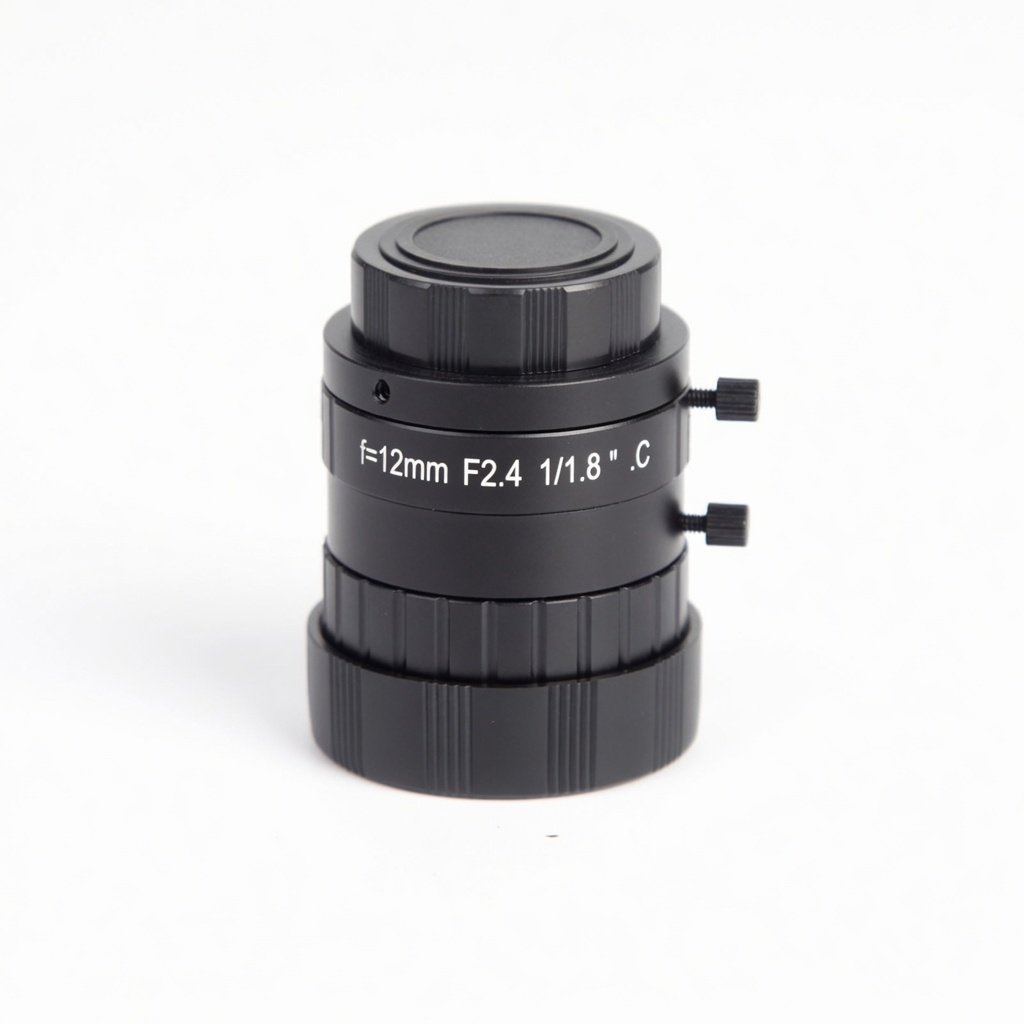

LMJJ-FA1217A-8M12mmF2.4~16C-Mount42.1°34.2°20.1°17.526mm<0.15%0.1m~∞M28x0.5

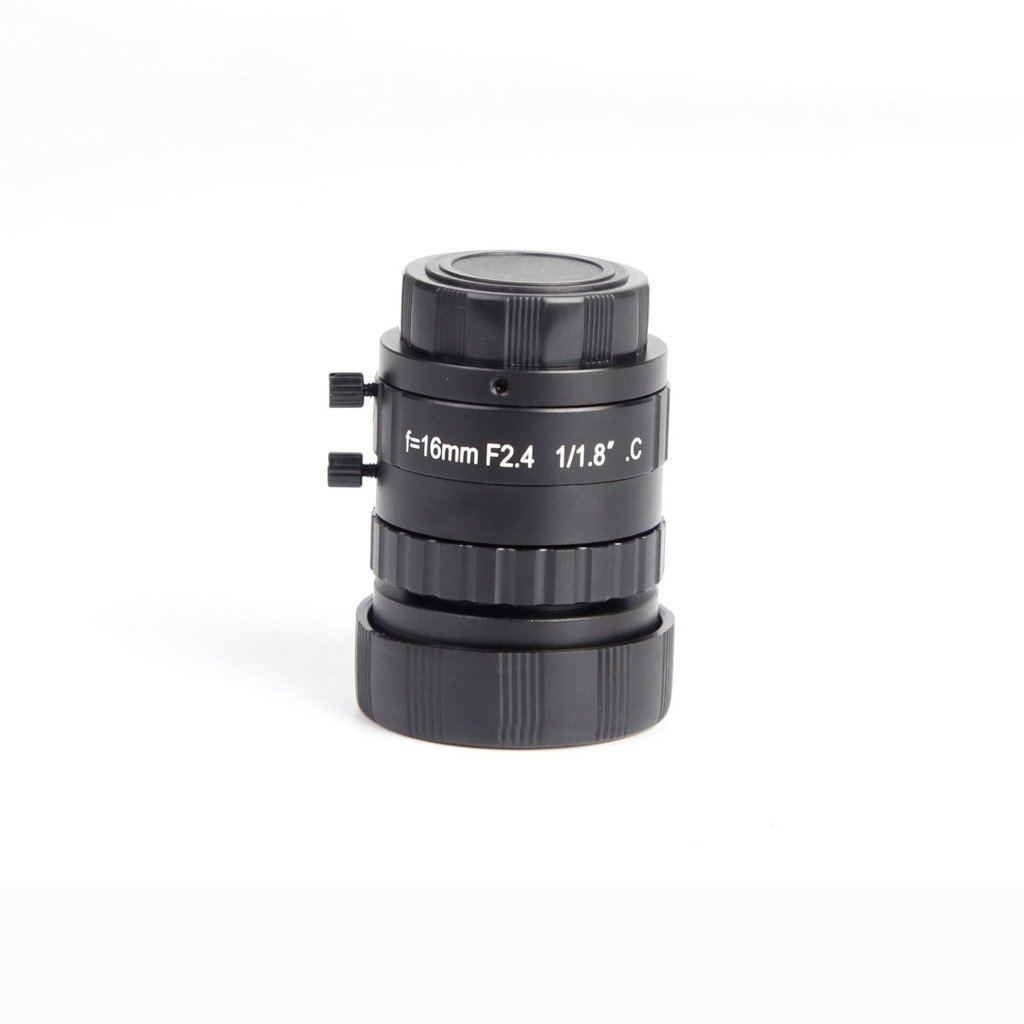

LMJJ-FA1617A-8M16mmF2.4~16C-Mount31.4°25.4°19.2°17.526mm<0.2%0.08m~∞M27xP0.5
LMJJ-FA2517A-8M25mmF2.4~16C-Mount21.4°17.2°13°17.526mm<0.13%0.1m~∞M27xP0.5

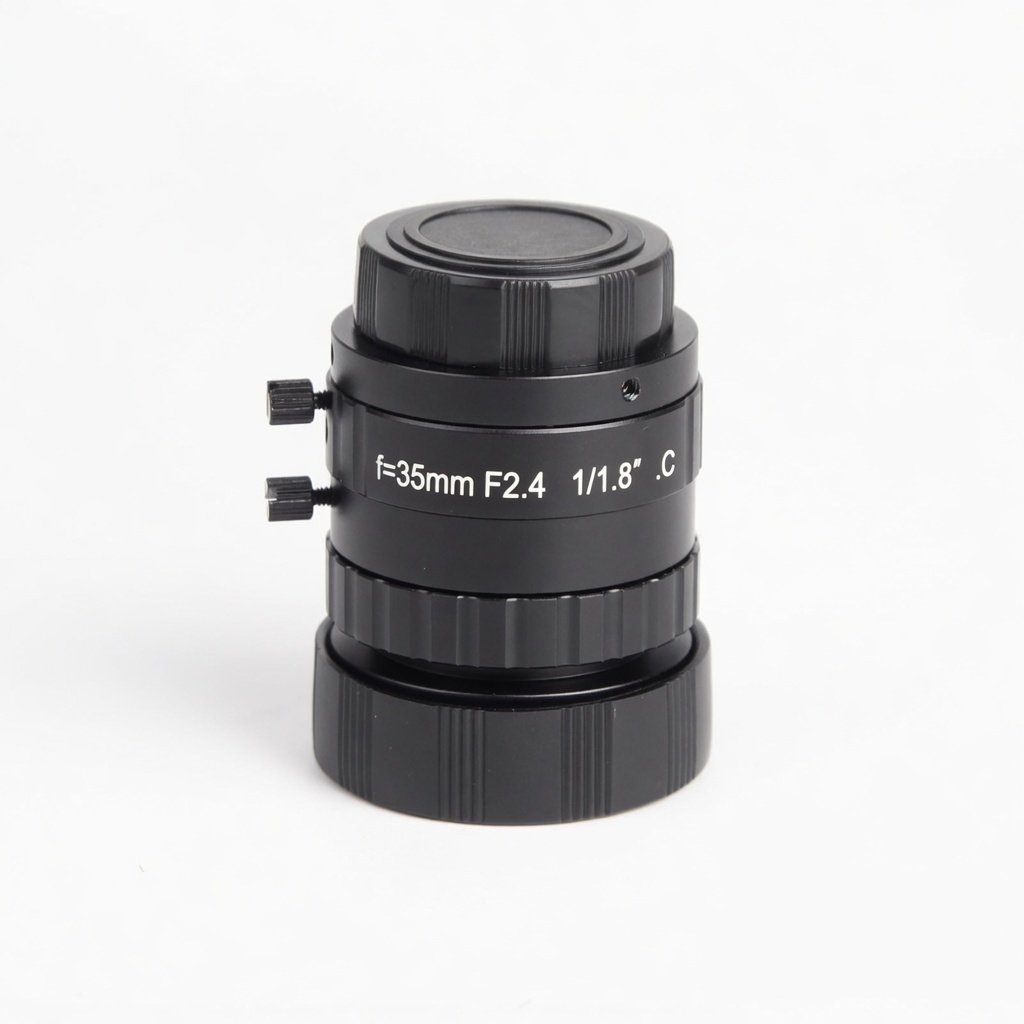

LMJJ-FA352017A-8M35mmF2.4~16C-Mount15.7°12.5°9.5°17.526mm<0.1%0.15m~∞M27xP0.5

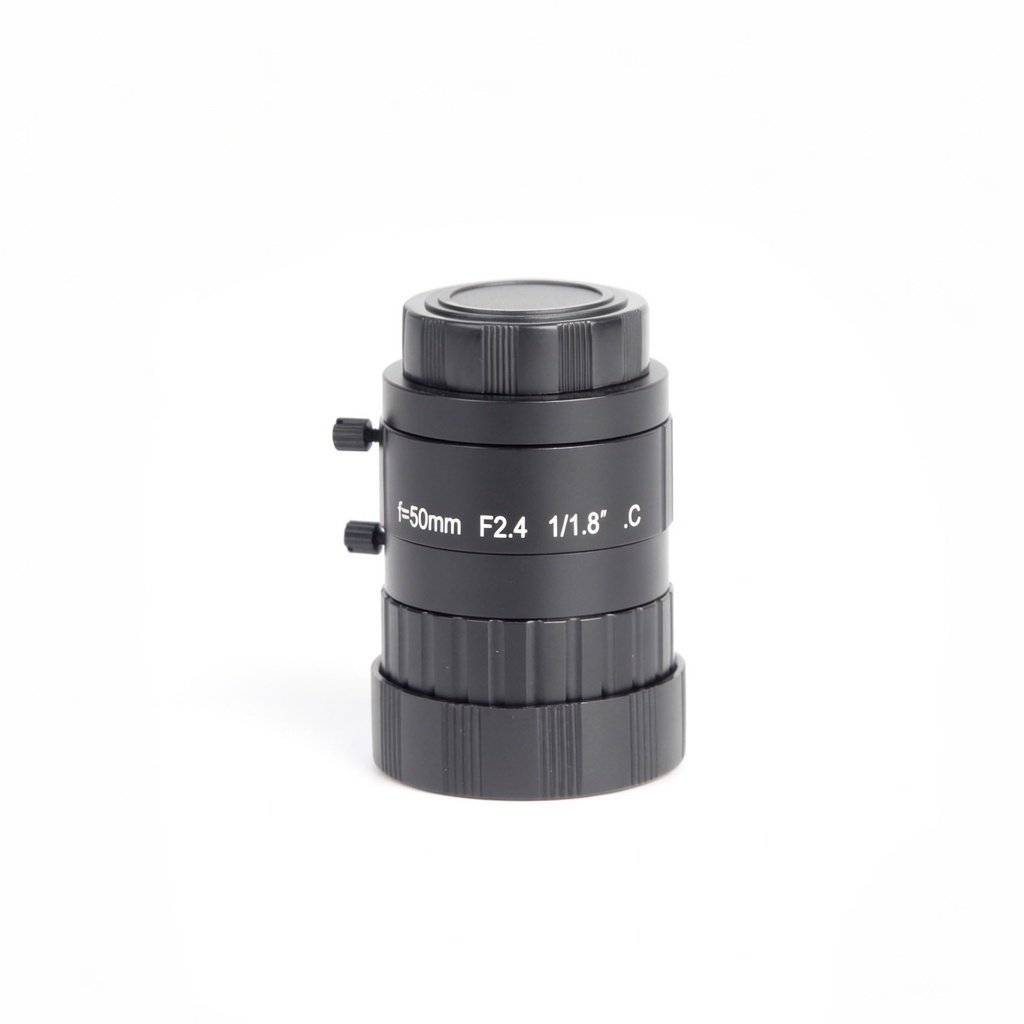

LMJJ-FA5017A-8M50mmF2.4~16C-Mount12°9.6°7.3°17.526mm<0.1%0.3m~∞M28x0.5

Sensor 2/3″ 5MP · 8 models

Part NO.EFLFNO.MountFOV DFOV HFOV VBFLDistortionFocusing RangeThread

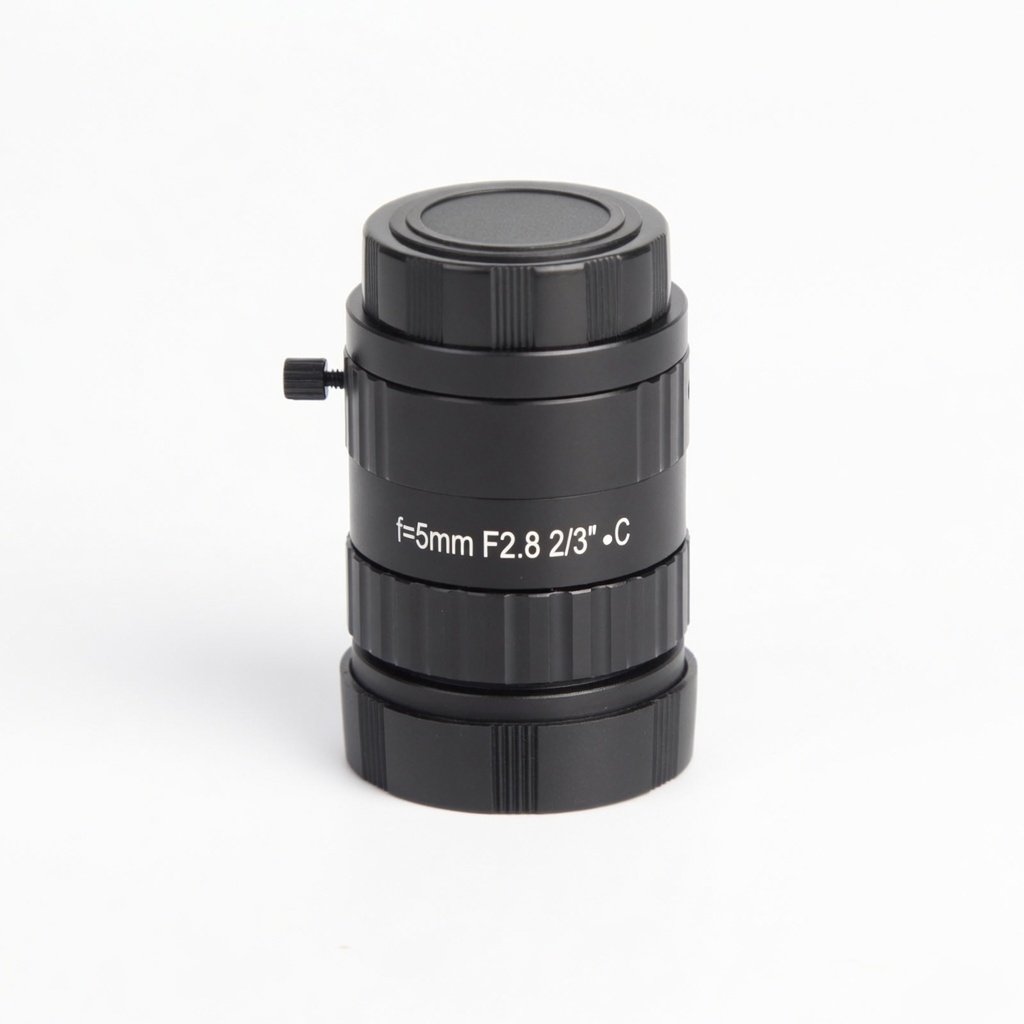

LMJJ-FA0528C-5M5mmF2.8~16C-Mount97°84.3°68°17.526mm≤3%0.1m~∞M72xP0.75
LMJJ-FA0619A-5M6mmF1.9C-Mount43.3°71.4°61.5°17.526mm≤1.7%0.1m~∞M37xP0.5~0.6H

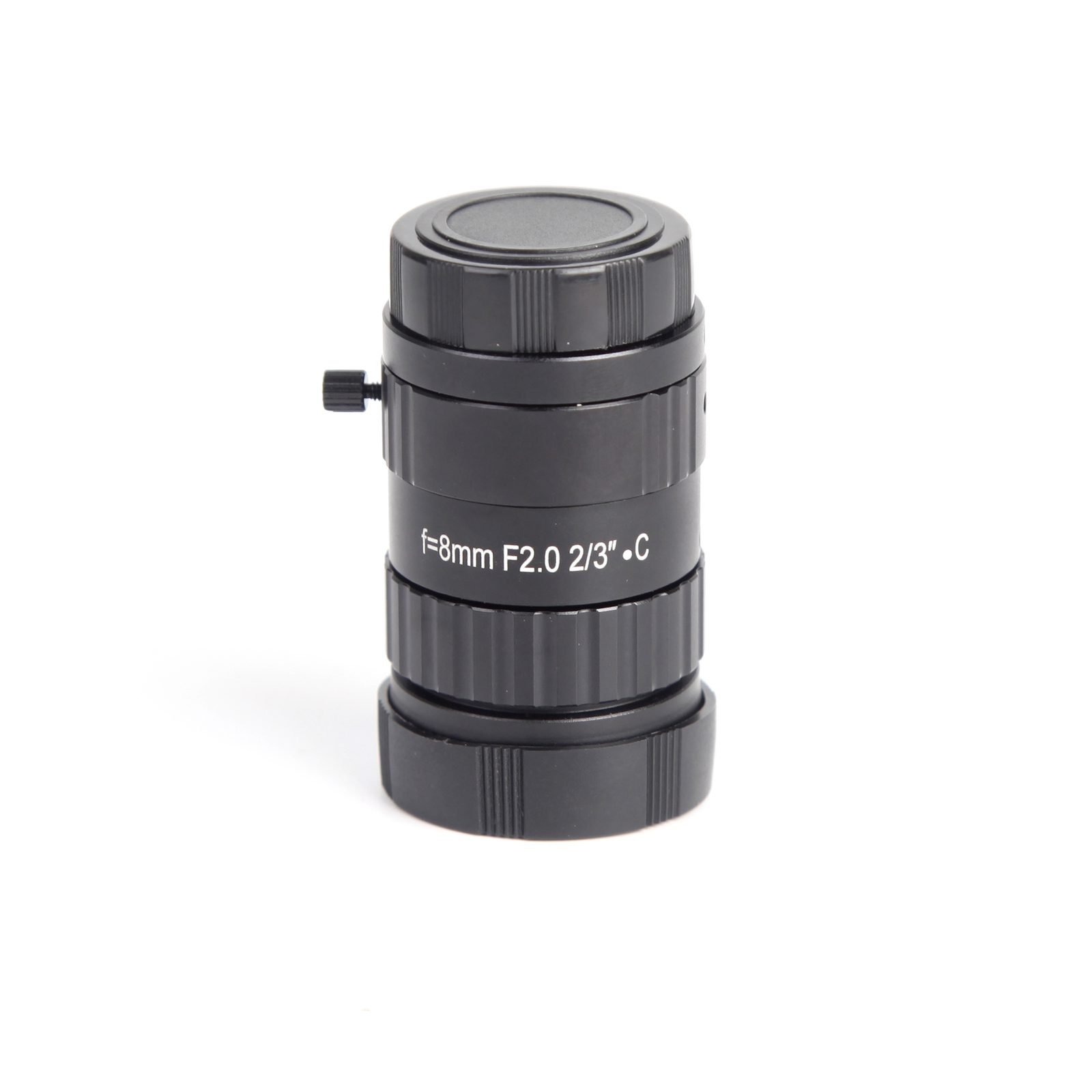

LMJJ-FA0805A-5M8mmF2.0~16C-Mount68°56.6°44°17.526mm<0.1%0.06m~∞M27xP0.5~0.6H

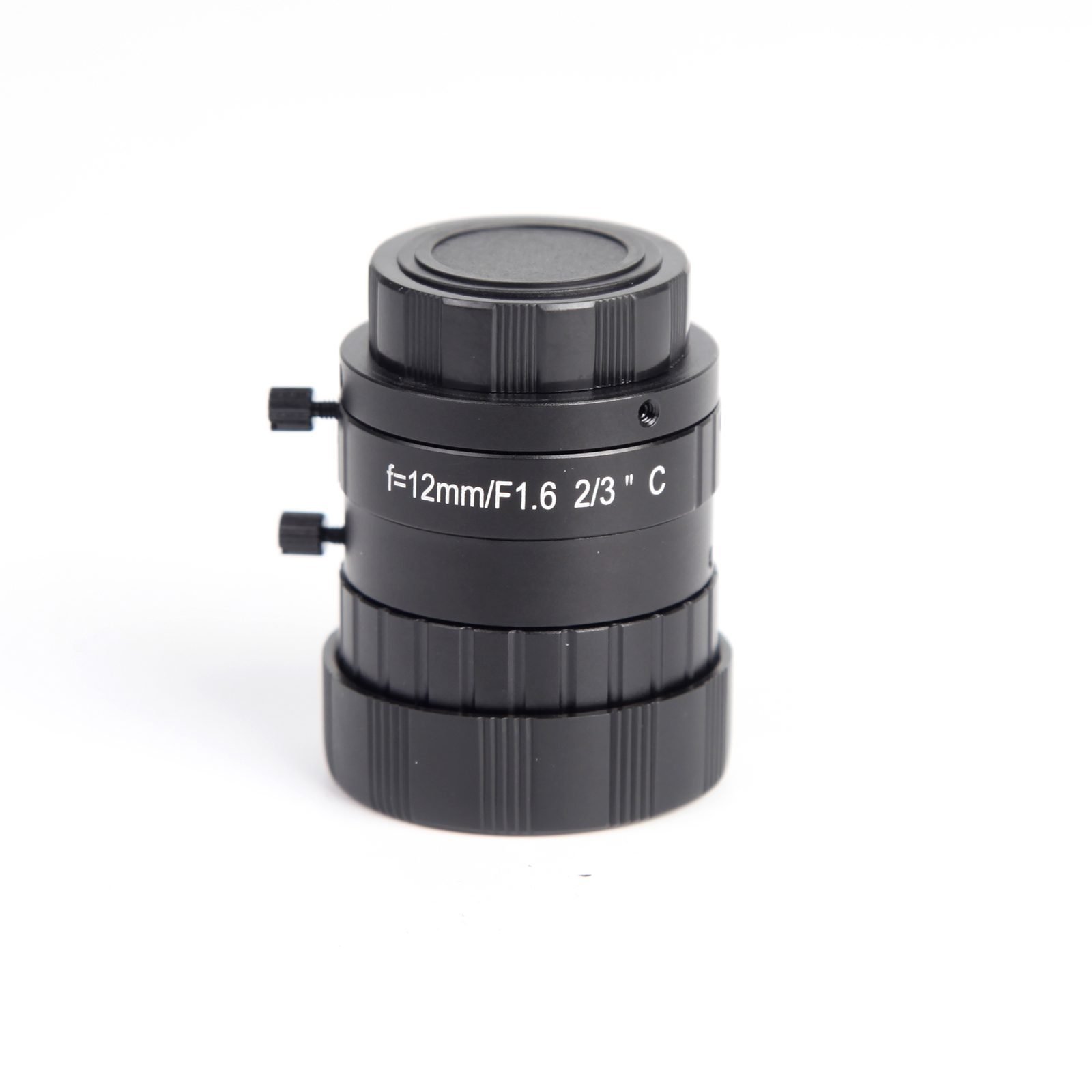

LMJJ-FA1205D-5M12mmF1.6~16C-Mount48.4°39.6°30.2°17.526mm<0.1%0.1m~∞M27xP0.5~0.6H

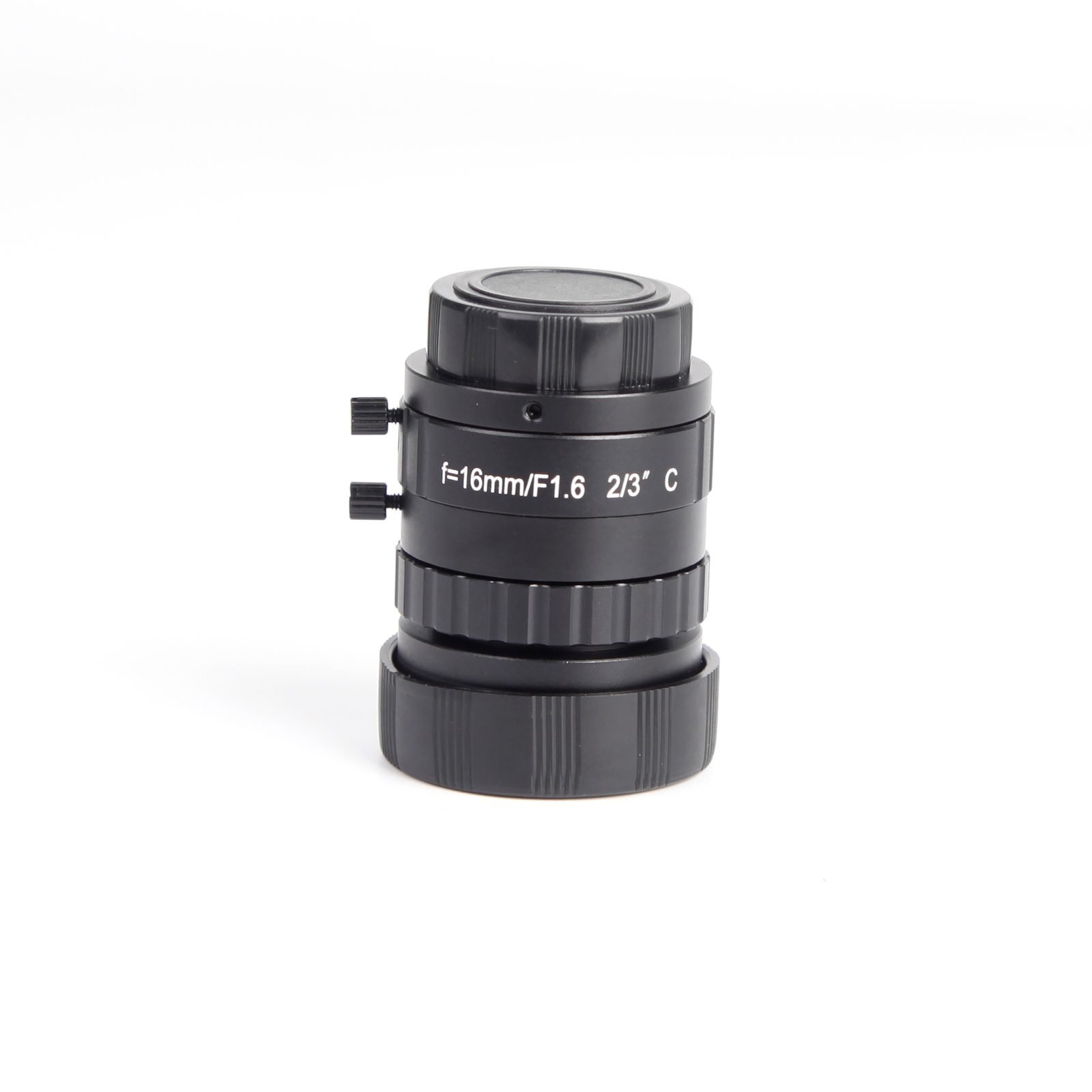

LMJJ-FA1605A-5M16mmF1.6~16C-Mount37.65°30.065°23.35°17.526mm<0.1%0.1m~1.5mM30.5×0.5

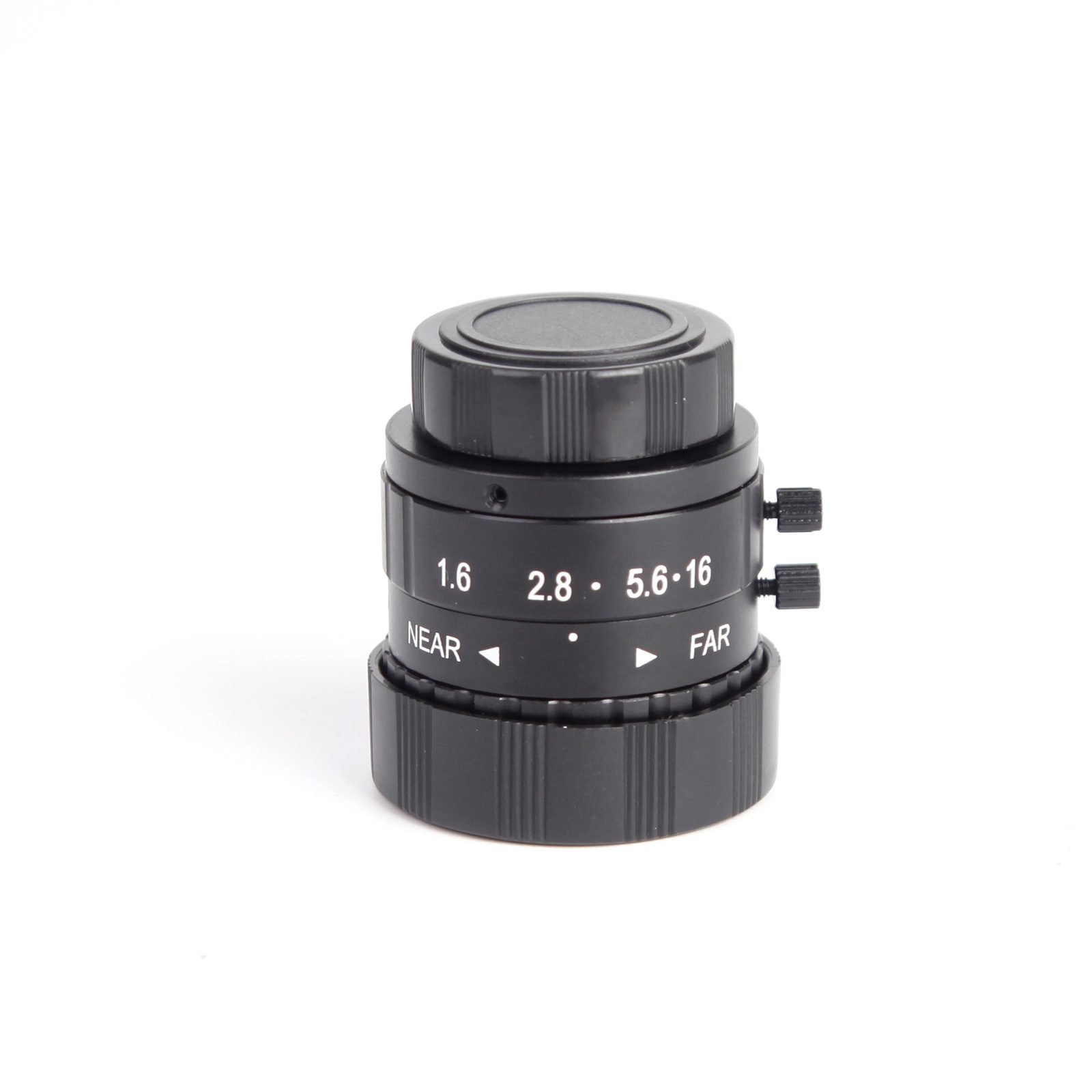

LMJJ-FA2505A-5M25mmF1.6~16C-Mount24.02°18.75°14.35°17.526mm<0.12%0.1m~1.5mM30.5×0.5

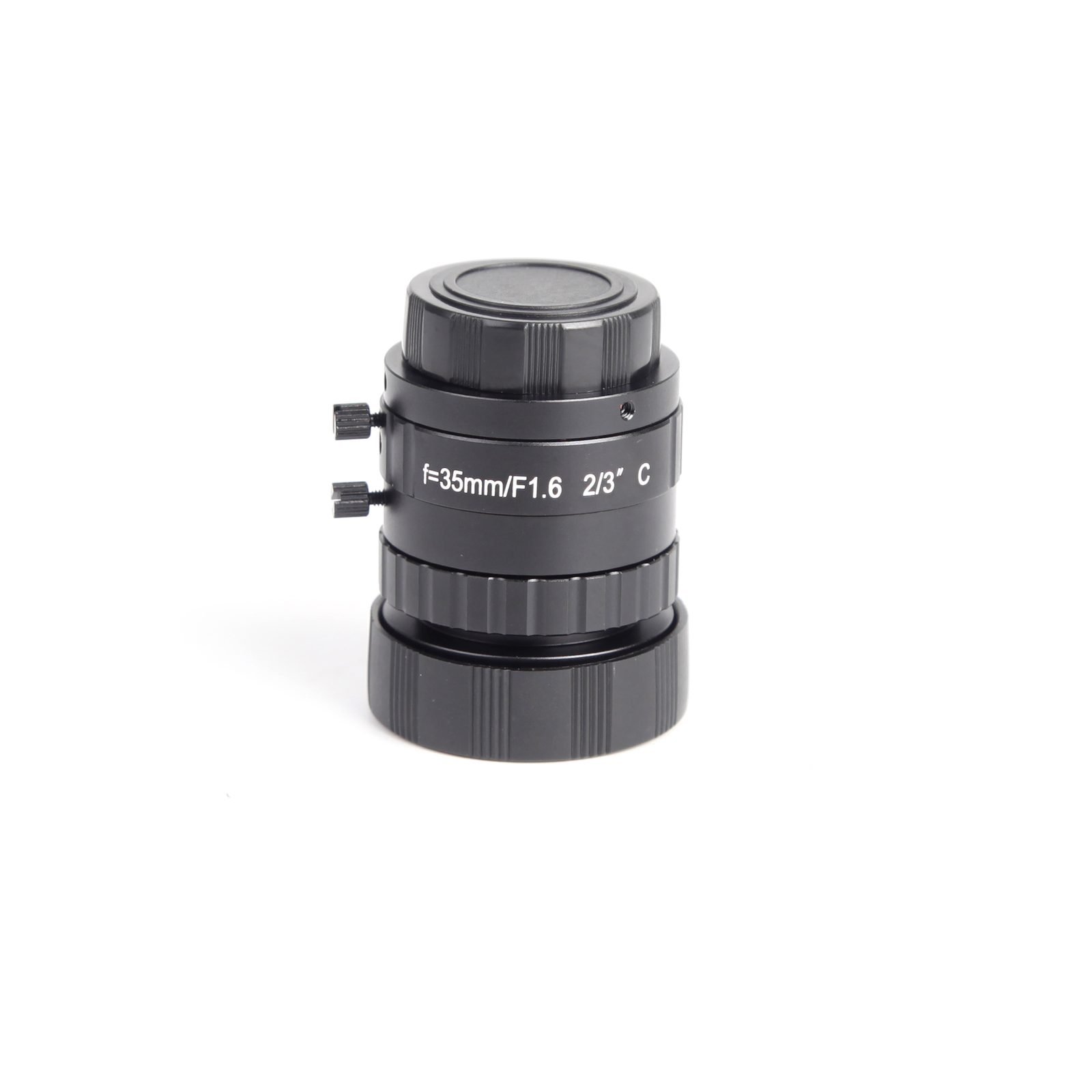

LMJJ-FA3505A-5M35mmF1.6~16C-Mount17.3°13.7°10.2°17.526mm<0.15%0.15m~∞M30.5×0.5

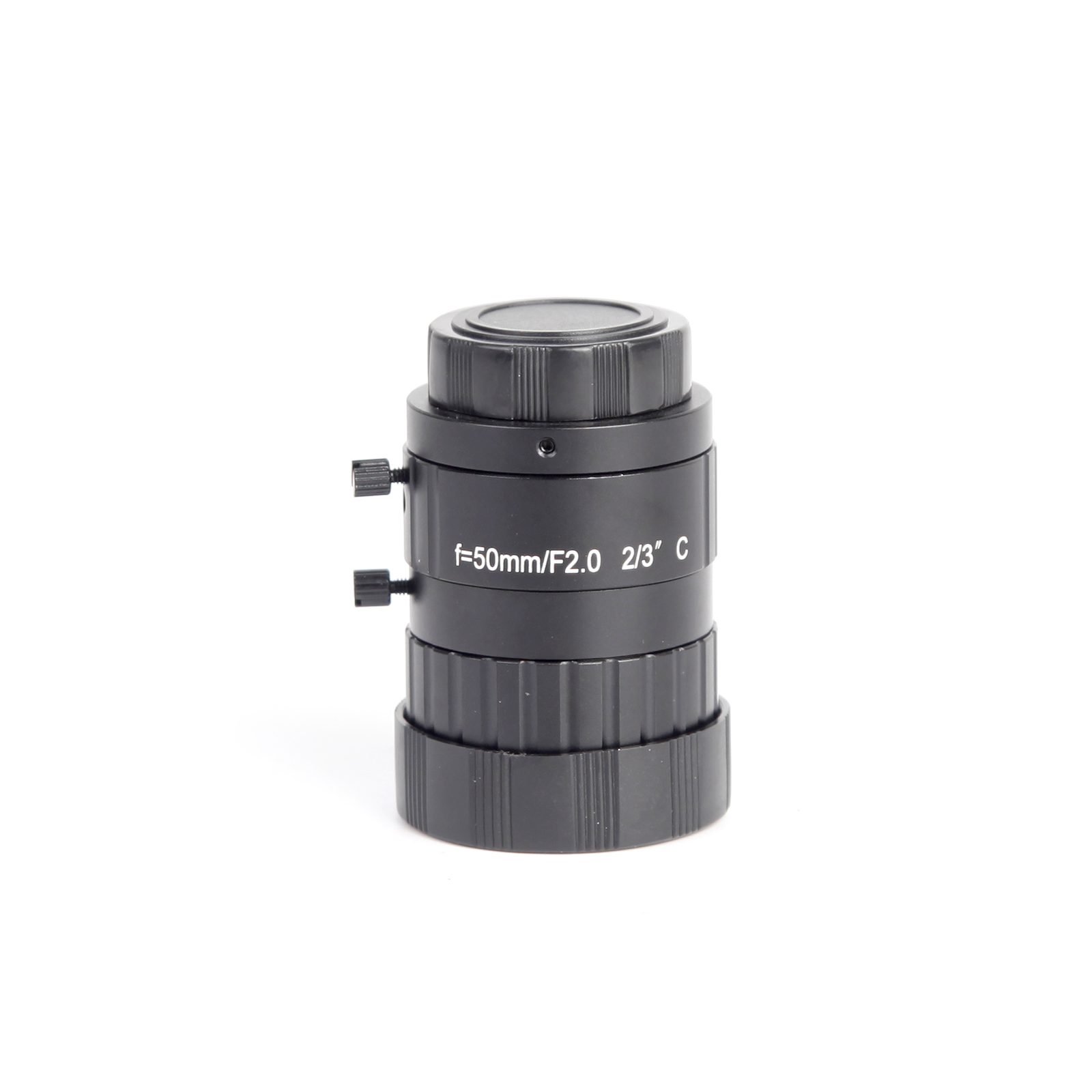

LMJJ-FA5005A-5M50mmF2.0~16C-Mount13.32°10.68°8.05°17.526mm<0.3%0.3m~∞M30.5×0.5

Sensor 1.1″ 10MP & 20MP · 11 models

Part NO.EFLFNO.MountFOV DFOV HFOV VBFLDistortionFocusing RangeThread

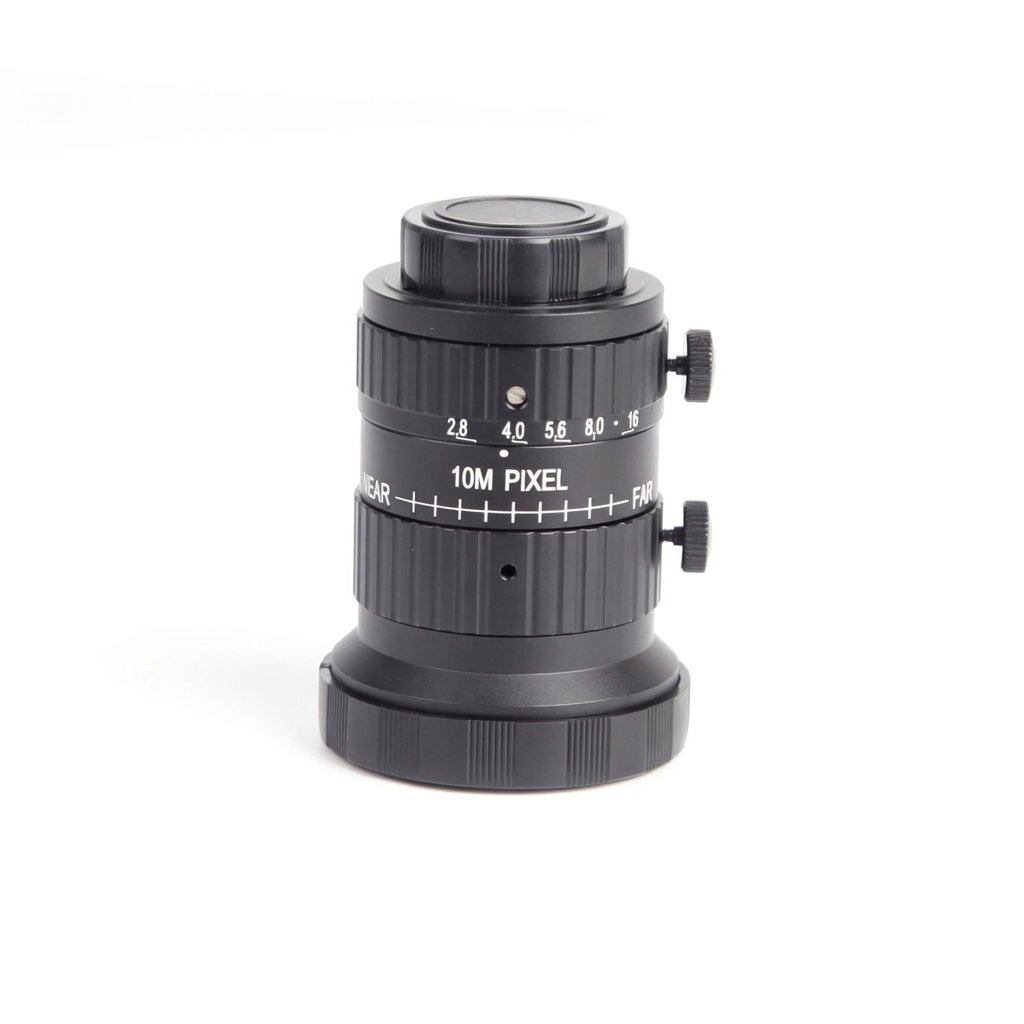

LMHS-MH2012-10MP12mmF2.0-F22C-Mount67.6°56.7°43.5°10.3mm-0.80%@y=8.0mm0.1m~∞M37.5xP0.5

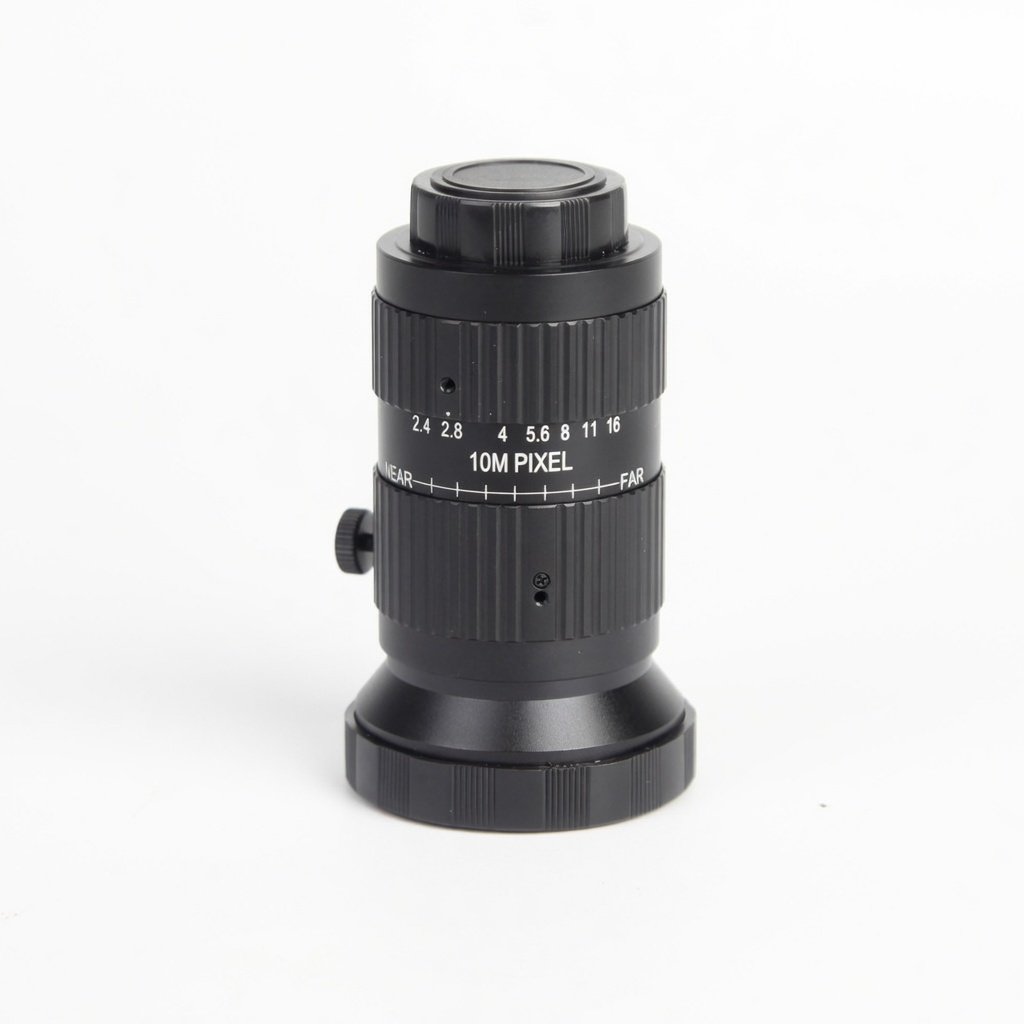

LMHS-MH2016-10MP16mmF2.0-F22C-Mount53.94°43.92°33.45°11.2mm-0.7%@y=8㎜0.1m~∞M34xP0.5

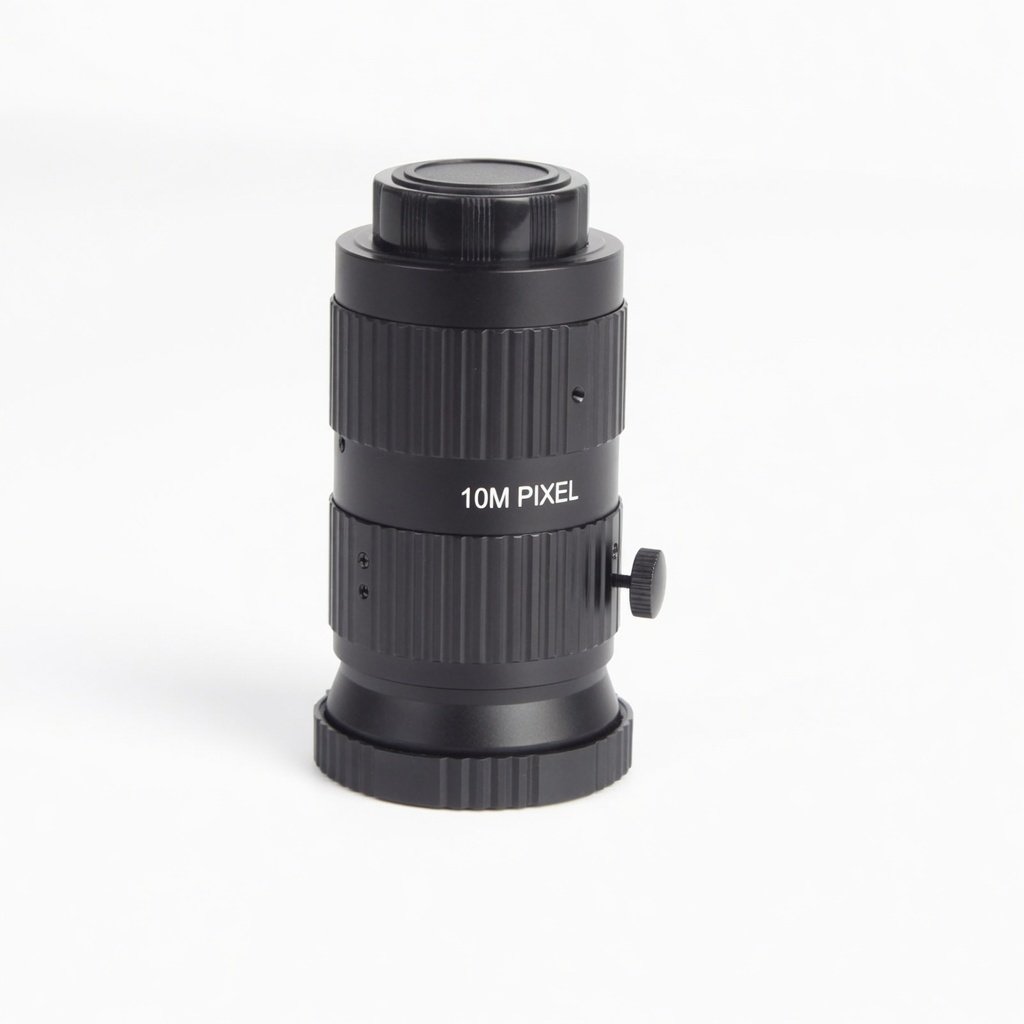

LMHS-MH1825-10MP25mmF1.8-closeC-Mount36.21°29.08°21.86°12.6mm-0.49%@y=8㎜0.15m~∞M30.5xP0.5

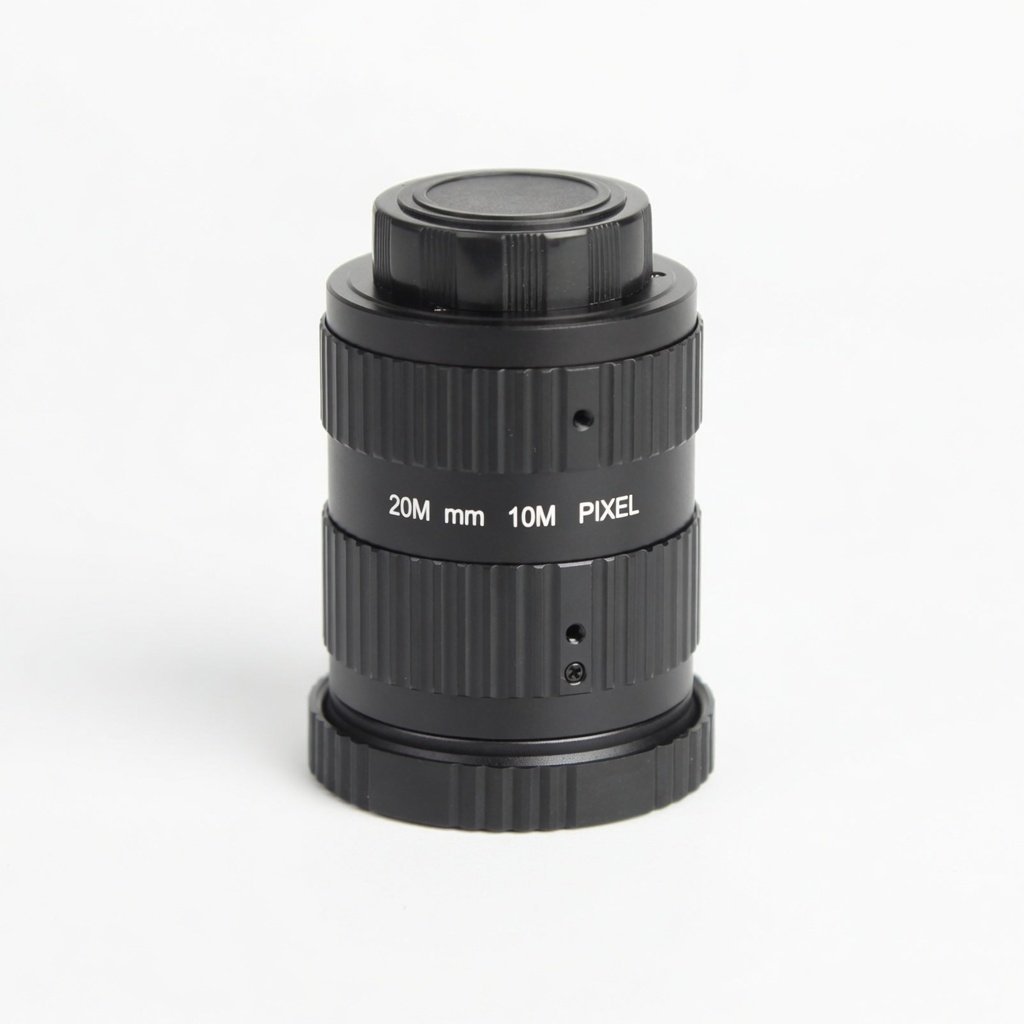

LMHS-MH2035-10MP35mmF2.0-closeC-Mount26.10°20.83°15.72°12.9mm0.28%@y=8.0㎜0.2m~∞M30.5xP0.5

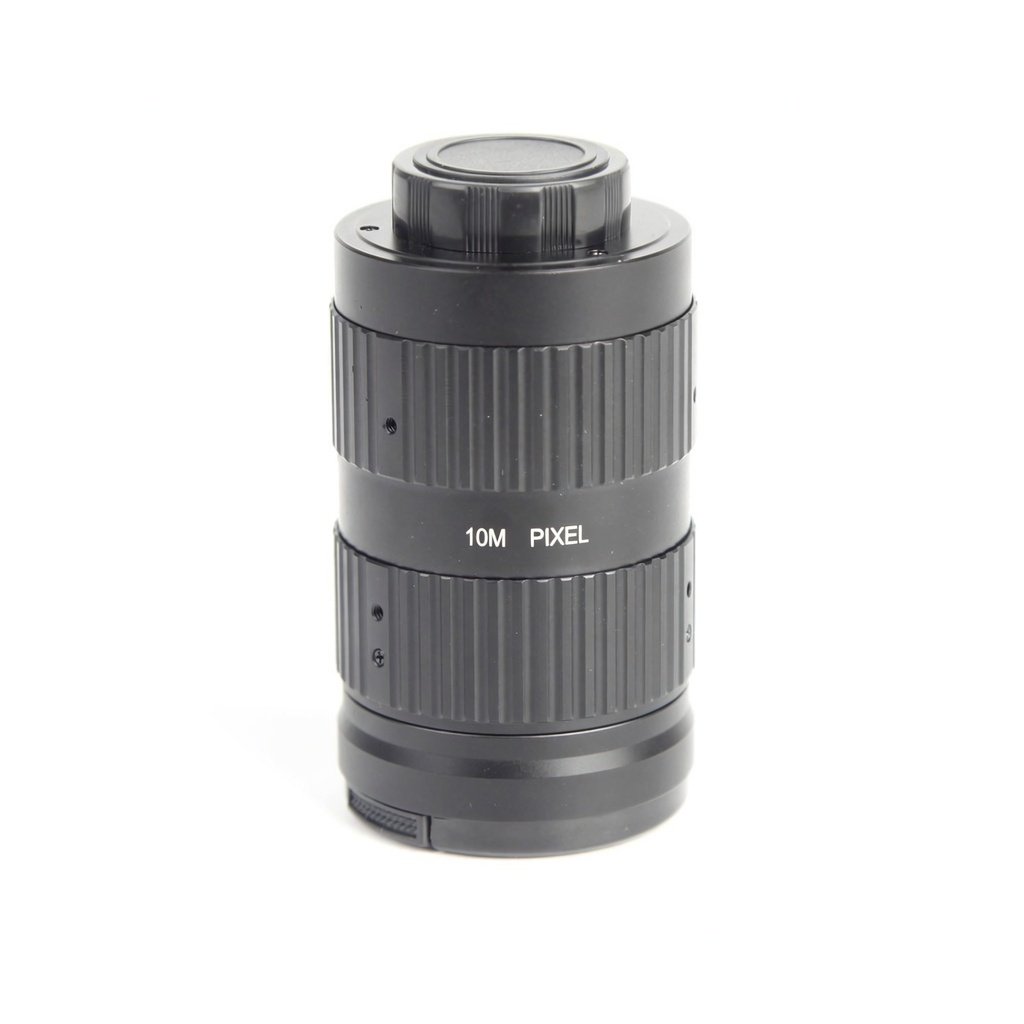

LMHS-MH2050-10MP50mmF2.0-F22C-Mount18.38°14.70°10.98°21.3mm-0.013%@y=8.0㎜0.25m~∞M37xP0.5

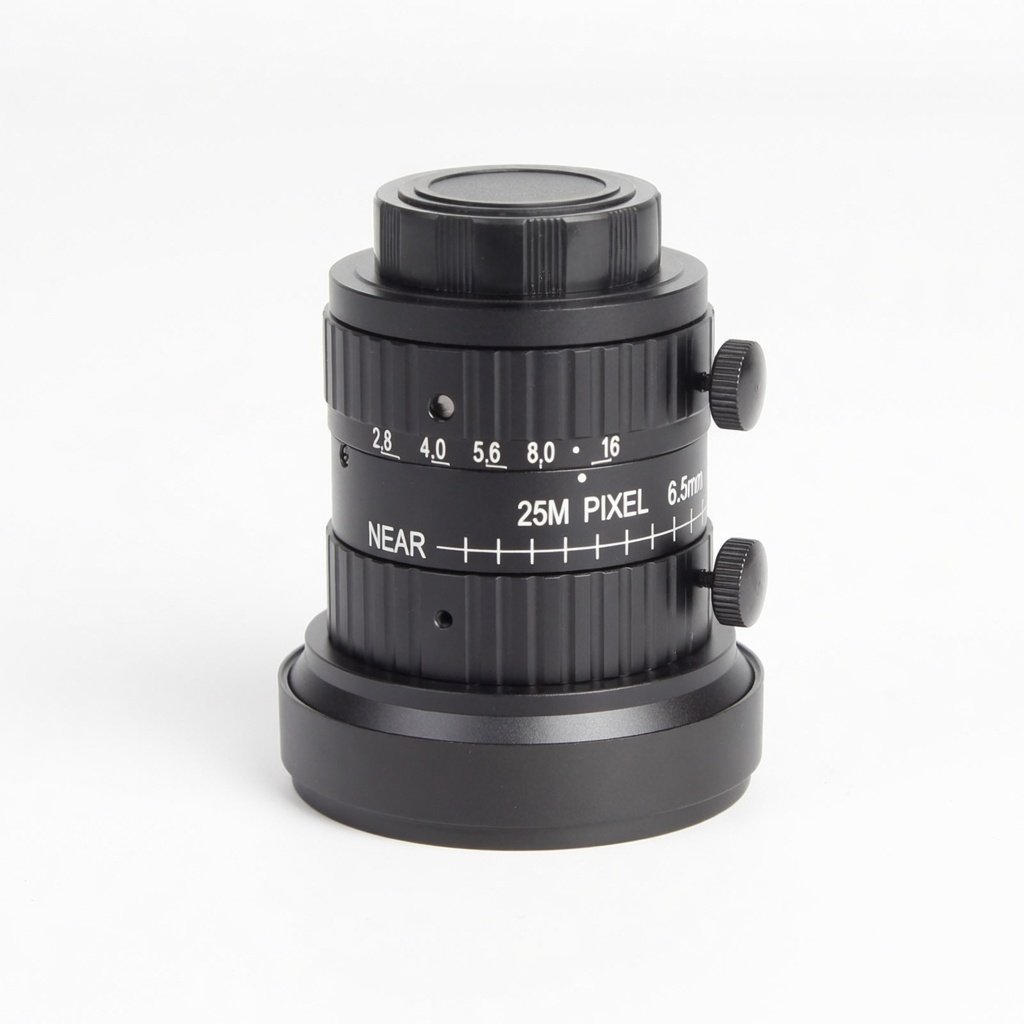

LMHS-MH2406-20MP6.5mmF2.4-F32C-Mount111.6°93.6°71.8°10.3mm11.6@y=8.8mm0.6 m~∞M37.5xP0.5

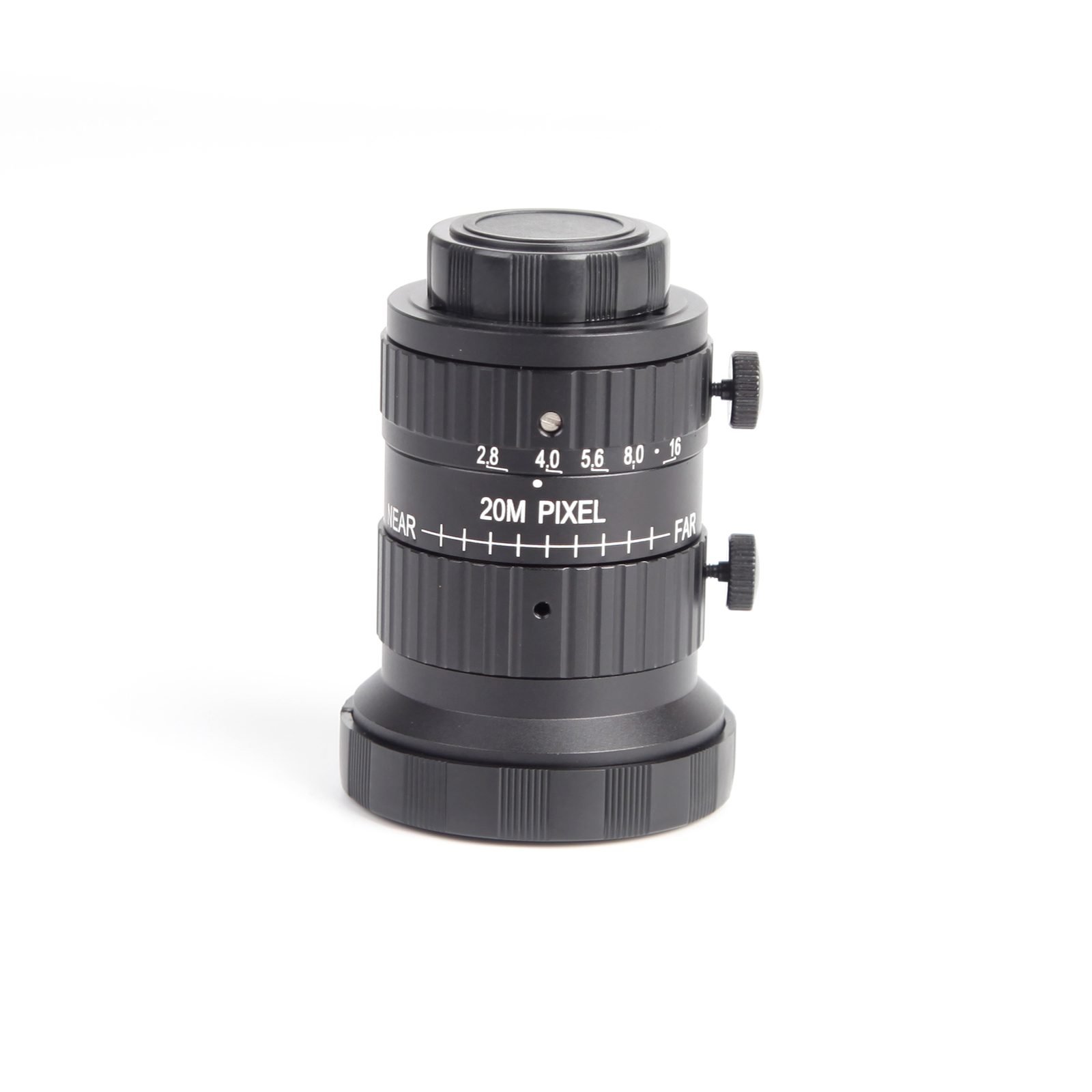

LMHS-MH2812-20MP12mmF2.8-F22C-Mount70.6°59.2°45.4°10.3mm-0.85%@y=8.8㎜0.1m~∞M37.5xP0.5

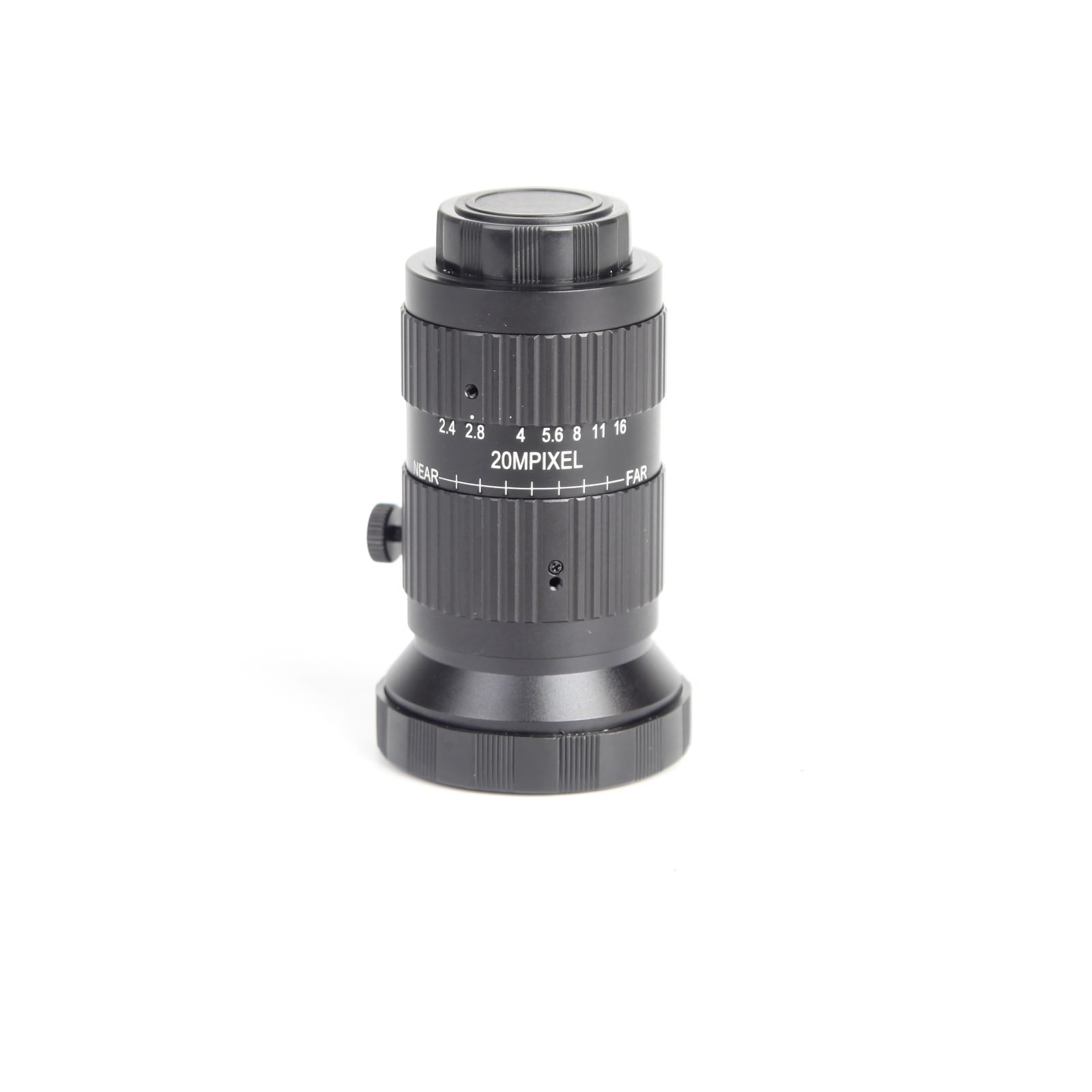

LMHS-MH2816-20MP16mmF2.8-F22C-Mount58.6°46.88°35.16°11.2mm-0.73%@y=8.8㎜0.1m~∞M34xP0.5

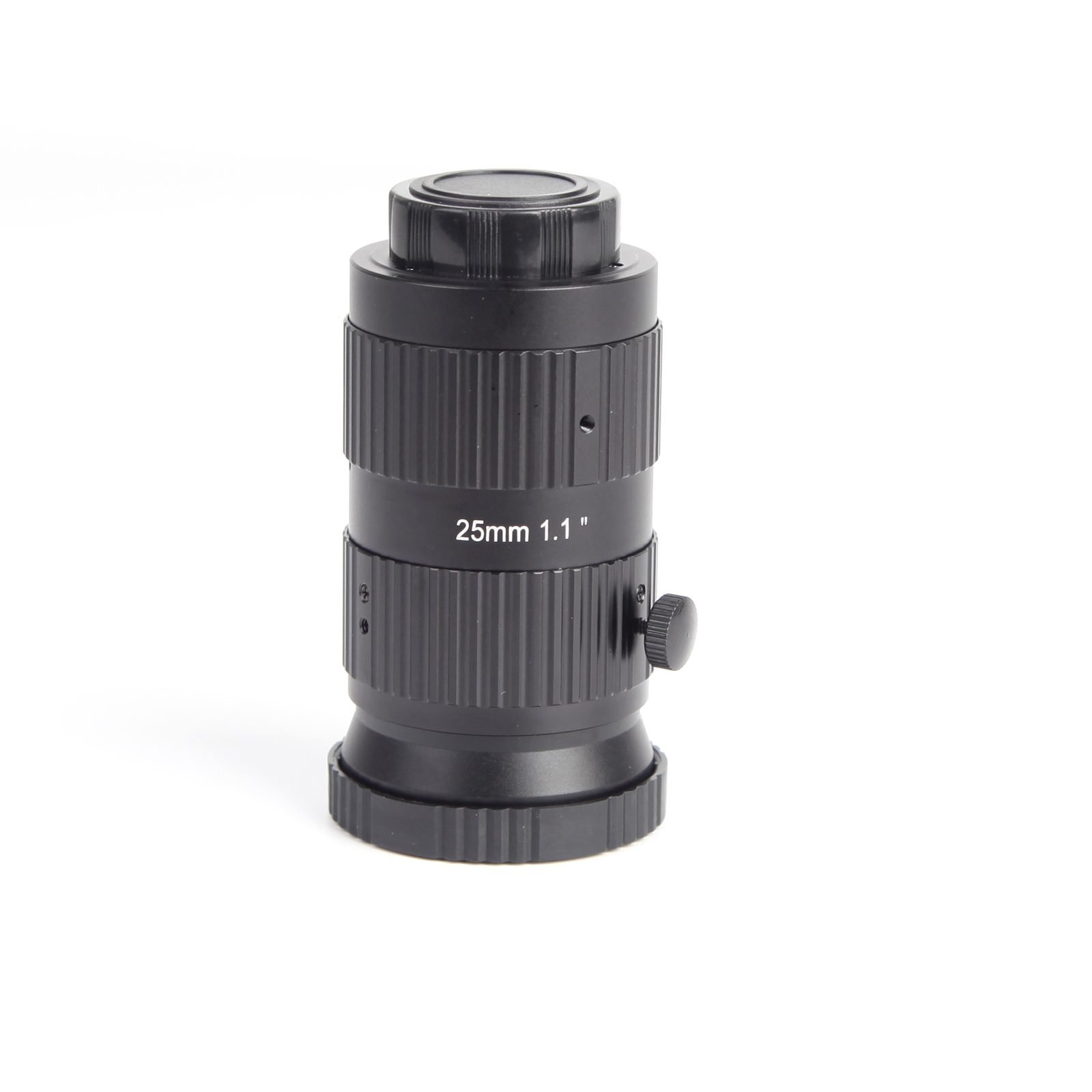

LMHS-MH2825-20MP25mmF2.8-F22C-Mount39.46°31.56°23.6°12.6mm-0.59%@y=8.8㎜0.15m~∞M30.5xP0.5

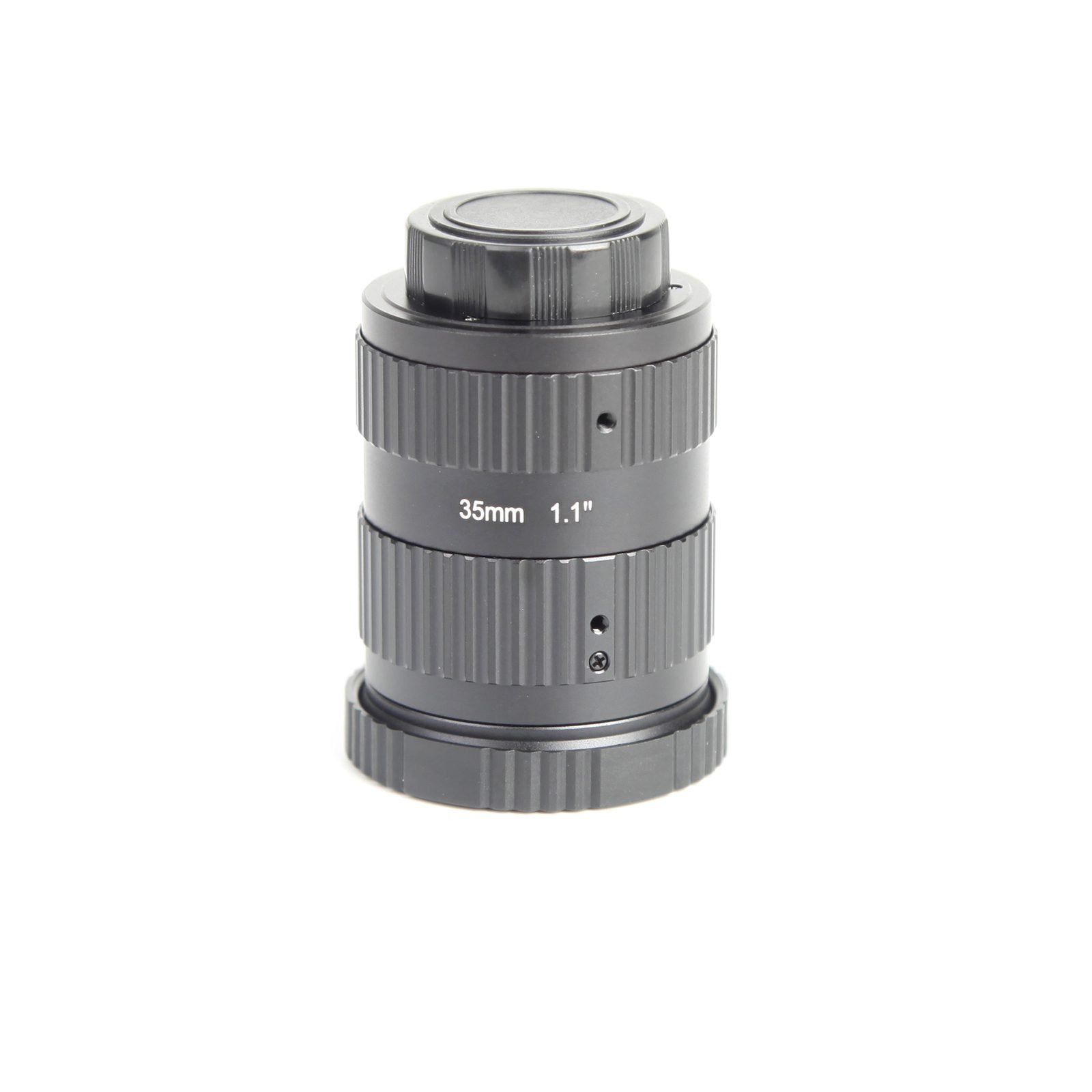

LMHS-MH2835-20MP35mmF2.8-F22C-Mount28.18°22.54°16.9°12.9mm0.37%@y=8.8㎜0.2m~∞M30.5xP0.5

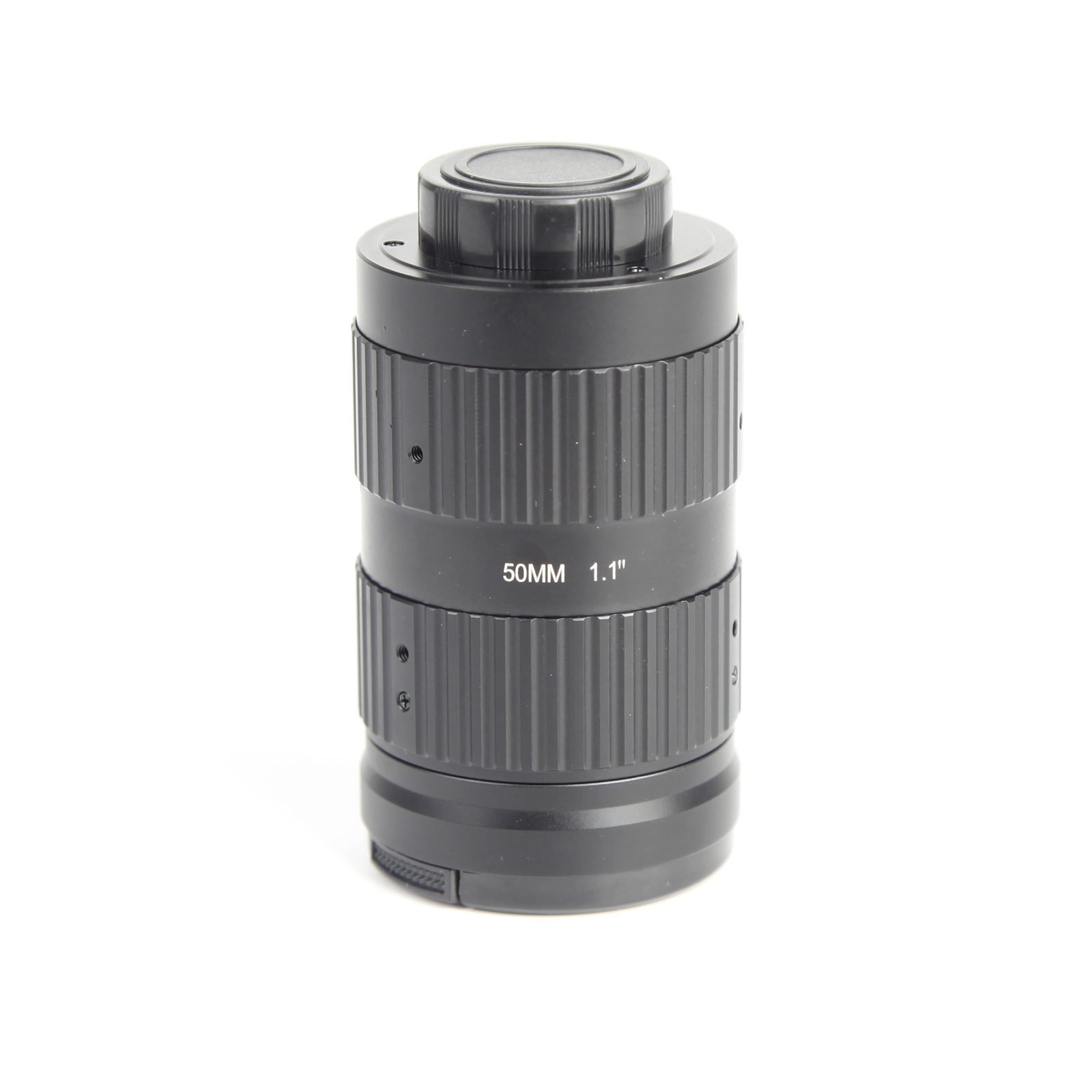

LMHS-MH2850-20MP50mmF2.8-F22C-Mount19.96°15.96°11.96°21.3mm-0.06%@y=8.8㎜0.25m~∞M37xP0.5

Sensor 4/3″ 12MP · 5 models

Part NO.EFLFNO.MountFOV DFOV HFOV VBFLDistortionFocusing RangeThread
LMHS-MH2012-12MP12mmF2.0-F22C-Mount89.1°75.6°61.2°18.8mm-2.05%@y=11.5mm0.15m~∞M77.0xP0.75

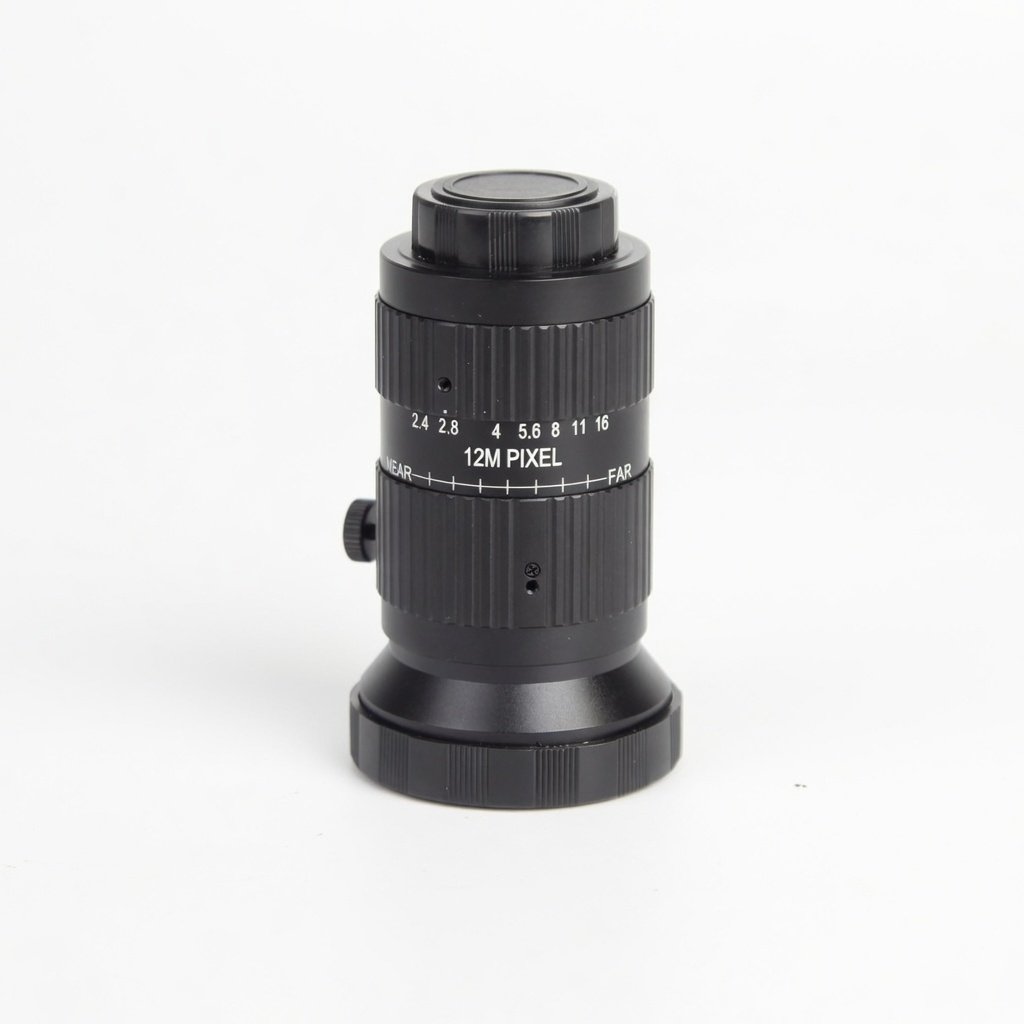

LMHS-MH2016-12MP16mmF2.0-F22C-Mount73.0°61.0°47.3°21mm-1.93%@y=11.5mm0.1m~∞M58.0xP0.75

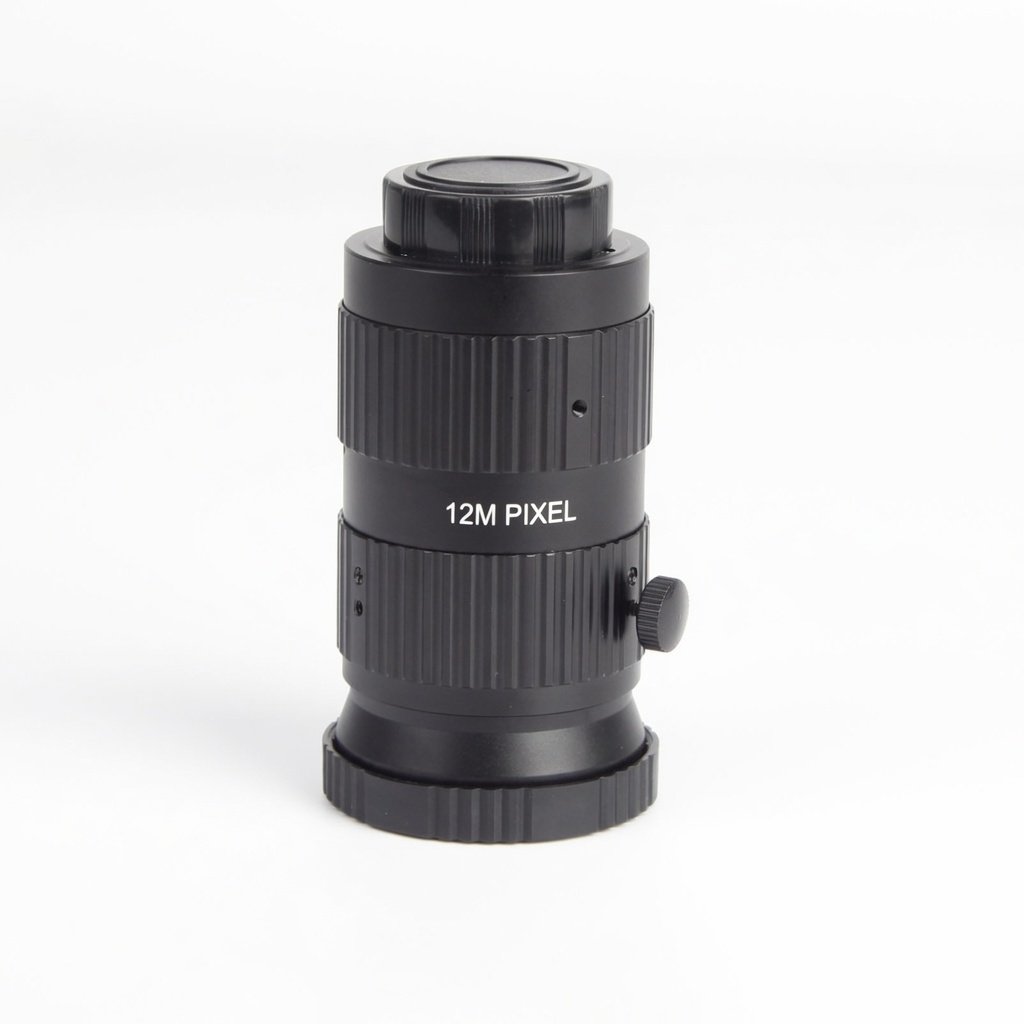

LMHS-MH2025-12MP25mmF2.0-F22C-Mount49.8°40.6°31.1°22㎜-0.64%@y=11.5mm0.15m~∞M46.0xP0.75

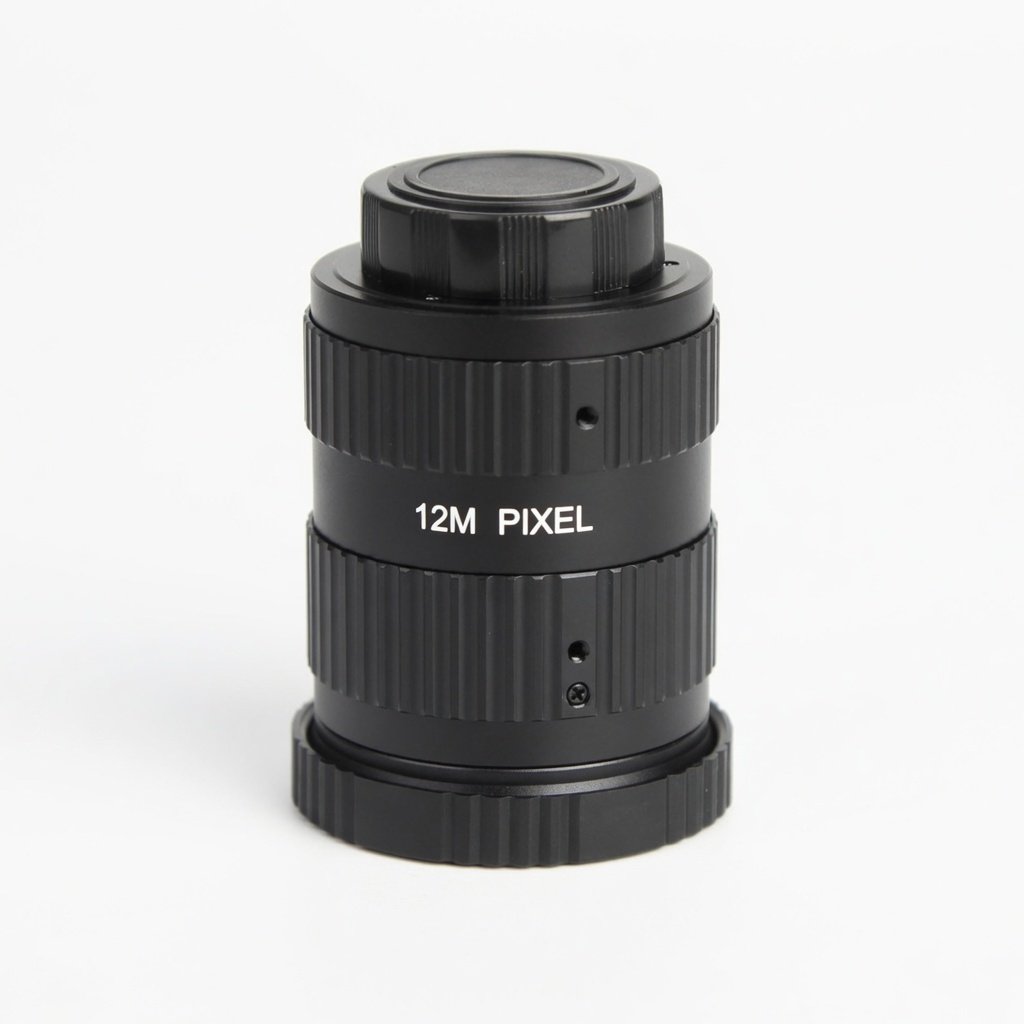

LMHS-MH2035-12MP35mmF2.0-F22C-Mount36.8°29.7°22.5°18㎜-0.52%@y=11.5mm0.2m~∞M46xP0.75

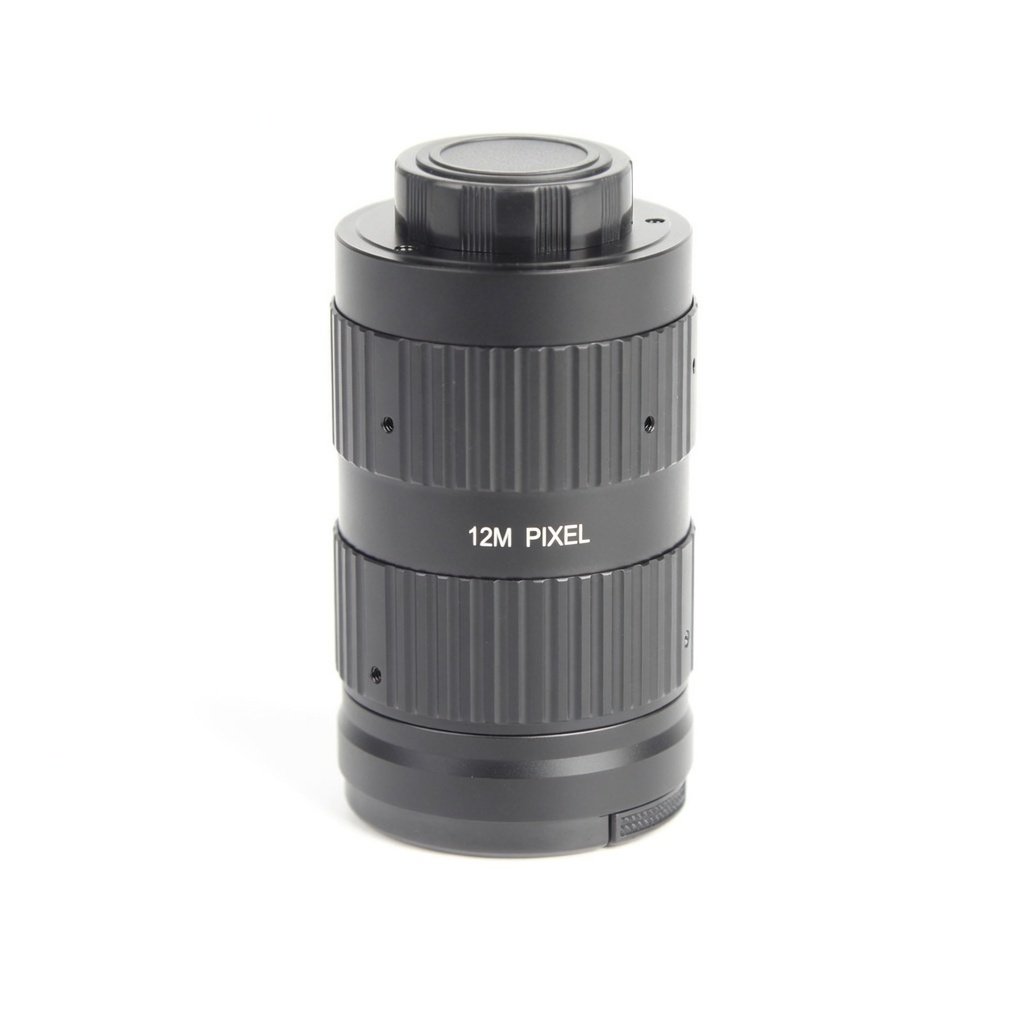

LMHS-MH2050-12MP50mmF2.0-F22C-Mount26.0°21.0°15.8°20mm-0.13%@y=11.5mm0.3m~∞M46xP0.75
Request Datasheets & Pricing
Lensmind Lab & Factory

Measured, Not Claimed — Data from Our Lab

Every claim on this page is backed by measurement. Below: the metrology instruments in our quality lab, optical bench and Zemax simulation records, and the production floor that builds and signs off every batch.

Metrology instruments

Taylor Hobson Form TalySurf surface profilometer in the Lensmind quality lab for lens surface metrology
Taylor Hobson Form TalySurf — surface profilometry in our quality lab
2D vision measuring machine inspecting a Lensmind lens component in the quality control lab
2D vision measuring machine — dimension inspection under 1 µm
Lens centering measurement with a Trioptics OptiCentric instrument at the Lensmind factory
Trioptics OptiCentric — lens centering & alignment measurement
Focus position measurement of a Lensmind lens assembly with a Trioptics OptiSurf instrument
Trioptics OptiSurf — focus position measurement on the bench
Engineer running an MTF test on a Lensmind lens at a production test station
MTF test station — engineer running a production MTF test

Lab data & simulation records

MTF curves across image height for Lensmind machine vision lens configurations, sagittal and tangential
Measured MTF vs image height — sagittal & tangential
Relative distortion curve of a Lensmind lens plotted against image height in percent
Relative distortion curve, plotted per batch
Zemax through-focus MTF simulation of a Lensmind 54 degree f/1.2 lens design at 85 line pairs per millimeter
Through-focus MTF simulation @ 85 lp/mm
Zemax spot diagram of a Lensmind f/1.2 wide angle lens across 0 to 31.6 degree field positions
Spot diagram — F/1.2 wide-angle design, 0–31.6°
Field curvature and F-tan theta distortion plots from Zemax simulation of a Lensmind f/1.2 lens design
Field curvature & F-tan θ distortion — design analysis

Production floor

Operators assembling lenses inside a Lensmind cleanroom assembly room
Cleanroom assembly room — sub-2 mm optics built in controlled air
Row of CNC lathes machining precision lens barrels in the Lensmind workshop
CNC lathe workshop — precision lens barrels machined in-house
Optical polishing machines finishing lens elements at the Lensmind factory
Optical polishing machines — elements finished to curve
Ultrasonic cleaning and spin-dry line for optical parts at the Lensmind factory
Ultrasonic cleaning & spin-dry line for optical parts
MTF testing of M12 board lenses at a Lensmind production test station
M12 board lenses on the production MTF test station
Checking M12x0.5 lens mount threads with a go thread gauge at Lensmind
M12×0.5 mount checked with a go thread gauge, every unit

Every batch ships with its own MTF, distortion, BFL and DOF records. Want the full test pack for a specific model? Request the full test report →
