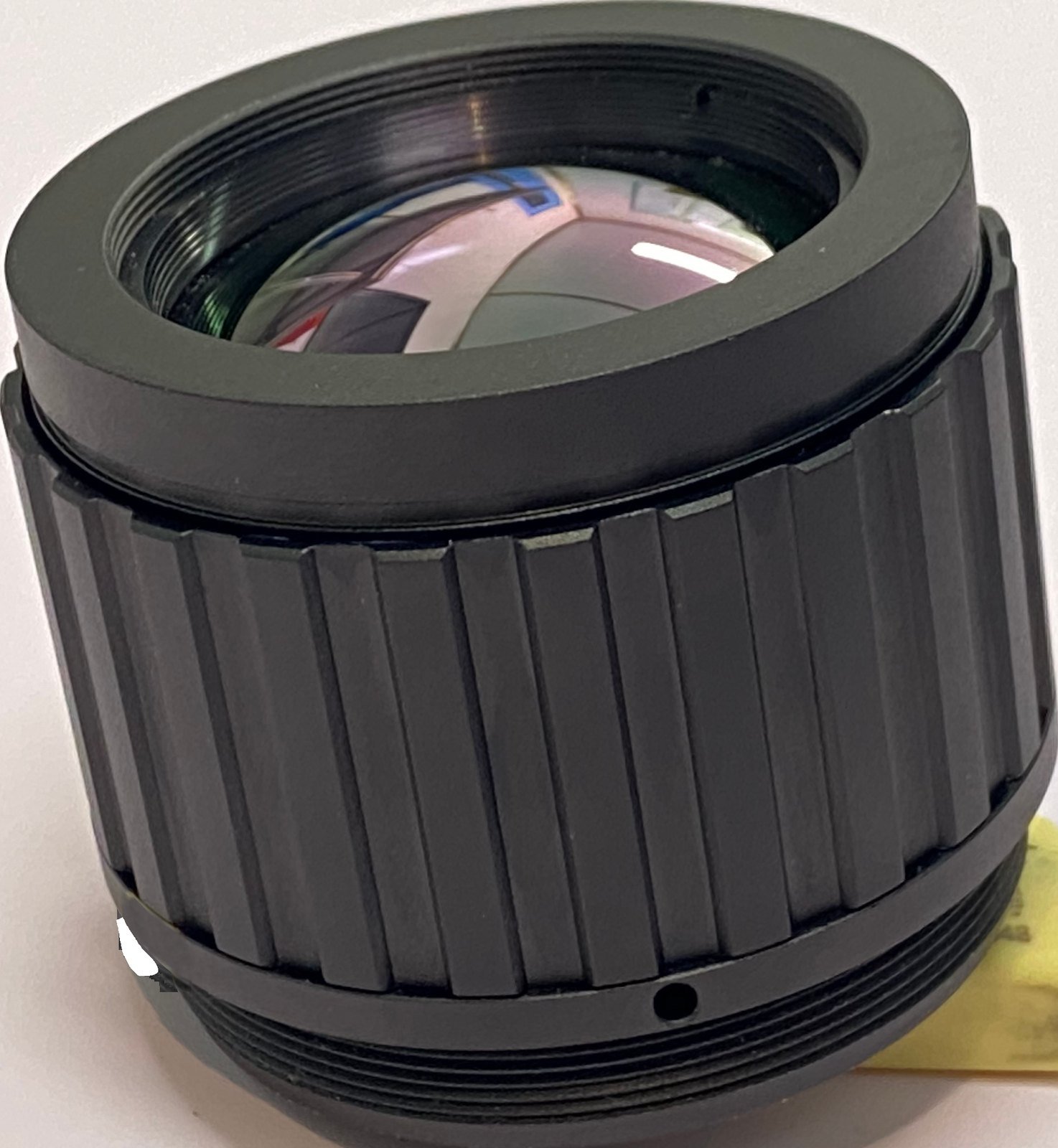

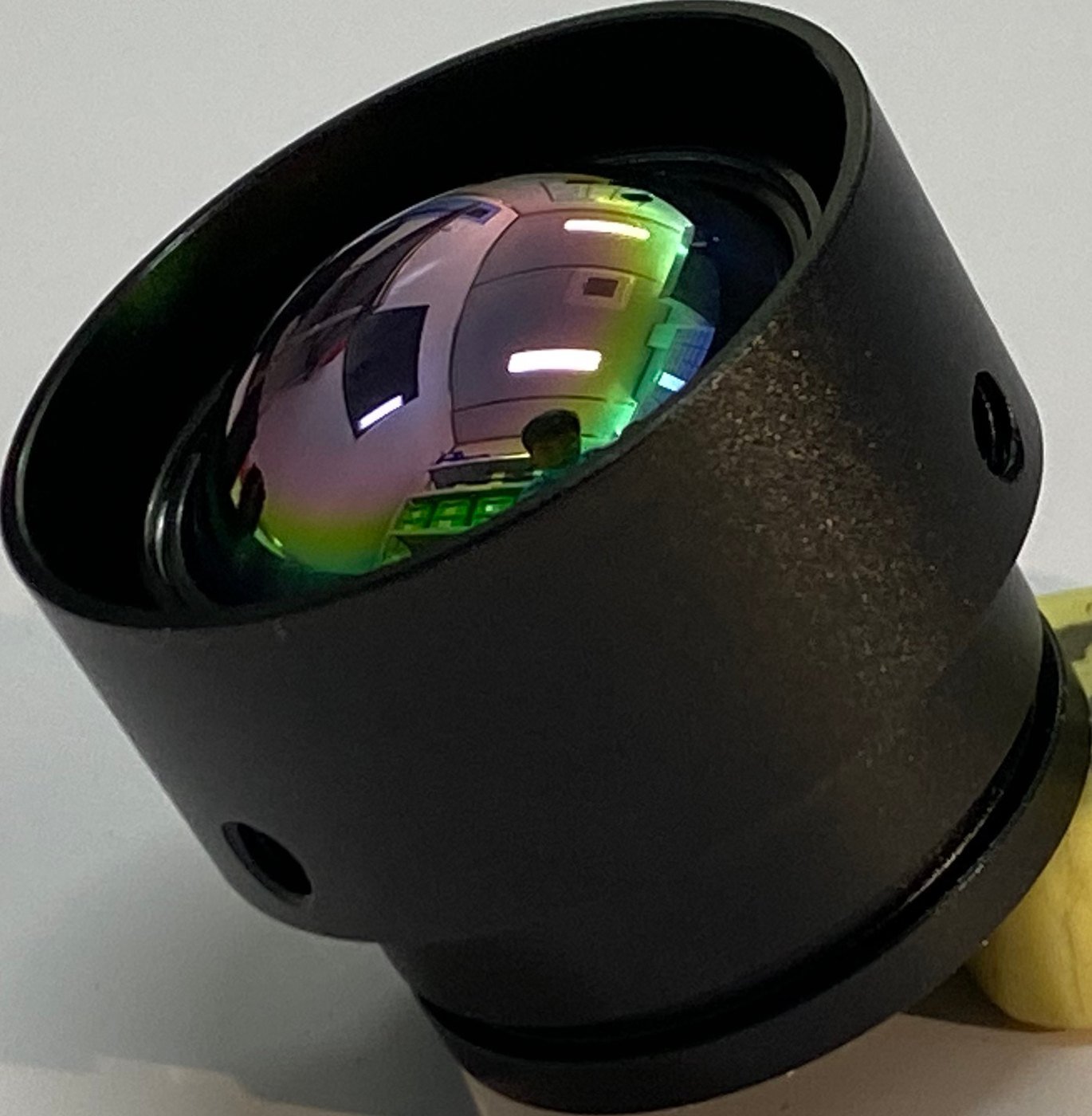

LMXHG-059 75mm thermal lens

Specifications

LMXHG-059 values from the official Lensmind thermal specification sheet. Empty sheet cells are shown as —.

Part No.	LMXHG-059
Pixel pitch	12 µm
Matched detector	640×512 12 µm
Resolution	640×512
EFL	75 mm
F/#	F1.2
FOV H	5.8°
FOV V	4.7°
Mount	M34×0.75

Part No.

LMXHG-059

Pixel pitch

12 µm

Matched detector

640×512 12 µm

Resolution

640×512

EFL

75 mm

F/#

F1.2

FOV H

5.8°

FOV V

4.7°

Mount

M34×0.75

50 mm, 75 mm, or 30–150 mm?

Neighbors from the same official matched-detector class. Pick focal length from field of view — values from the Lensmind thermal sheet.

Spec	LMXHG-055	LMXHG-059	LMXHG-066
EFL	50 mm	75 mm	30–150 mm
F/#	F1.0	F1.2	F0.86–1.2
FOV H	8.7°	5.8°	14.6° (at 30 mm)
FOV V	7°	4.7°	11.7°
Mount	M34×0.5	M34×0.75	M45×1
Matched detector	640×512 12 µm	640×512 12 µm	640×512 12 µm
Choose when	Wider field on the same 640×512 12 µm detector class.	This page.	Continuous zoom on the same 640×512 12 µm detector class.

Where LMXHG-059 is specified

An LMXHG thermal lens matched to 640×512 12 µm uncooled detectors. Typical stations below.

Security and perimeter surveillance

75 mm tightens the field to 5.8° H for identification-range posts.

Industrial thermography

Process monitoring where the camera sits off the line and still needs detector-limited detail.

Outdoor, night vision, handhelds

Fixed long-range security and border cameras that stay on one FOV.

640×512 12 µm thermal modules

F-number F1.2 and mount M34×0.75 are the sheet values for this barrel.

How to specify this lens

Send these four items and an engineer replies with datasheet and pricing within one business day.

Detector pitch and resolution

This catalog model is matched to 640×512 12 µm. Send the core part number so we confirm pitch, resolution, and window.

FOV or operating range

Target field of view or detection/identification range. If 75 mm is wide or tight, we shortlist 50 mm or 30–150 mm in the same detector class.

Sample qty and annual volume

Catalog thermal sampling from 50 pcs standard MOQ. Annual quantity sets production slot and price break.

Mount and documents

Sheet mount is M34×0.75. Ask for datasheet, mechanical drawing, or a custom thread in the first message.
